WELD CLEANING SYSTEM, AC/DC MODES, FOR MIG/TIG/SPOT WELDS, SIZE 64.2 OZ

WELD CLEANING SYSTEM, AC/DC MODES, FOR MIG/TIG/SPOT WELDS, SIZE 64.2 OZ

WALTER SURFACE TECHNOLOGIES

WELD CLEANING SYSTEM, AC/DC MODES, FOR MIG/TIG/SPOT WELDS, SIZE 64.2 OZ close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.

This product has been DISCONTINUED and can no longer be ordered.

Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
WELD CLEANING SYSTEM, AC/DC MODES, FOR MIG/TIG/SPOT WELDS, SIZE 64.2 OZ

WELD CLEANING SYSTEM, AC/DC MODES, FOR MIG/TIG/SPOT WELDS, SIZE 64.2 OZ

WALTER SURFACE TECHNOLOGIES

https://catalogue.grainger.ca/?hybris=true
  • Item # WLT54D315
  • Mfr. Model # 54D315
  • UNSPSC # 23271400
  • CATALOGUE PAGE # N/A
  • Shipping Weight 56.41 lbs

Product Details

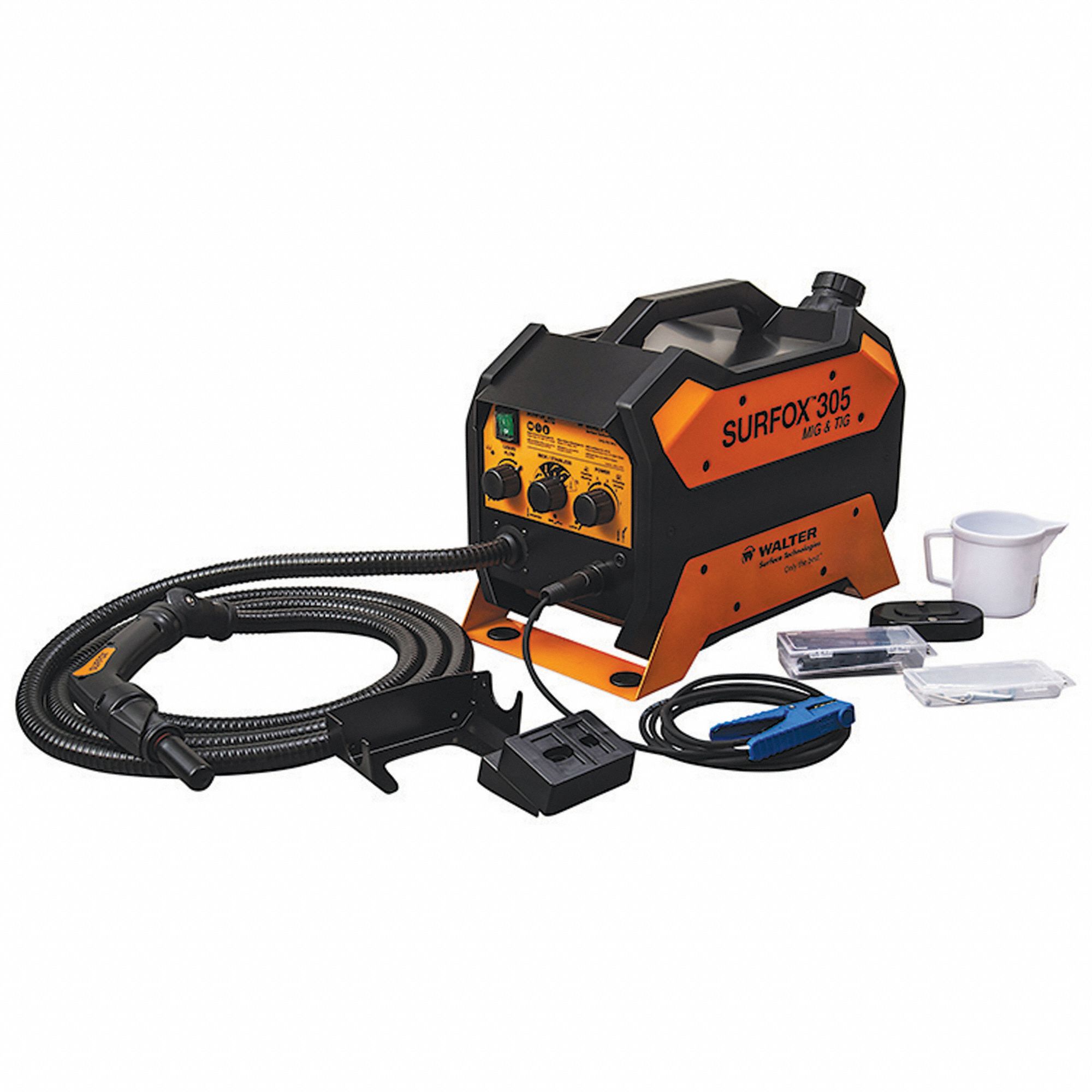

Clean MIG, TIG, and spot welds safely and efficiently with this SURFOX 305 industrial cleaning system. Its quick-change system easily changes out accessories, an integrated reservoir reduces the risk of contaminating or spilling the electrolyte solution, and it has a built-in vapour dispersion system. Included is a tungsten insert, three standard high conductivity cleaning pads, teflon ring, wide and narrow carbon fibre brushes, brush adaptor, ground cable, user guide, and carrying case.

Technical Specs

  • ItemWeld Cleaning System
  • Input Voltage120V AC
  • Receptacle TypeTank
  • SeriesSurfox 305
  • FeaturesBuilt-In Fume Elimination System, Cleans a Typical Weld at a Speed of 5 ft/min
  • Input Current9 A
  • Overall Height15 in
  • ProcessWeld Cleaning
  • StandardsASTM A967
  • Wand Hose Length13 ft
  • Maximum Output Current 30 A
  • Output Voltage Modes AC (Cleaning and Marking), DC (Polishing and Etching)
  • Includes Carrying Case, Ground Cable, Narrow Carbon Fibre Brush with Adaptor, PTFE Ring, Tungsten Insert, Wide Carbon Fibre Brush, (3) Standard High Conductivity Cleaning Pads
  • Compatible Material Type Aluminum, Stainless Steel, Titanium
  • Frequency 50 Hz, 60 Hz
  • Output Voltage 12 to 30V AC/DC
  • Overall Length 18.5 in
  • Receptacle Capacity 64.2 oz
  • Tool Functions Electrolyte Cleaning, MIG, TIG and Spot Welds Cleaning on Stainless Steel
  • Weight 44 lb
  • Country of Origin Italy (subject to change)
