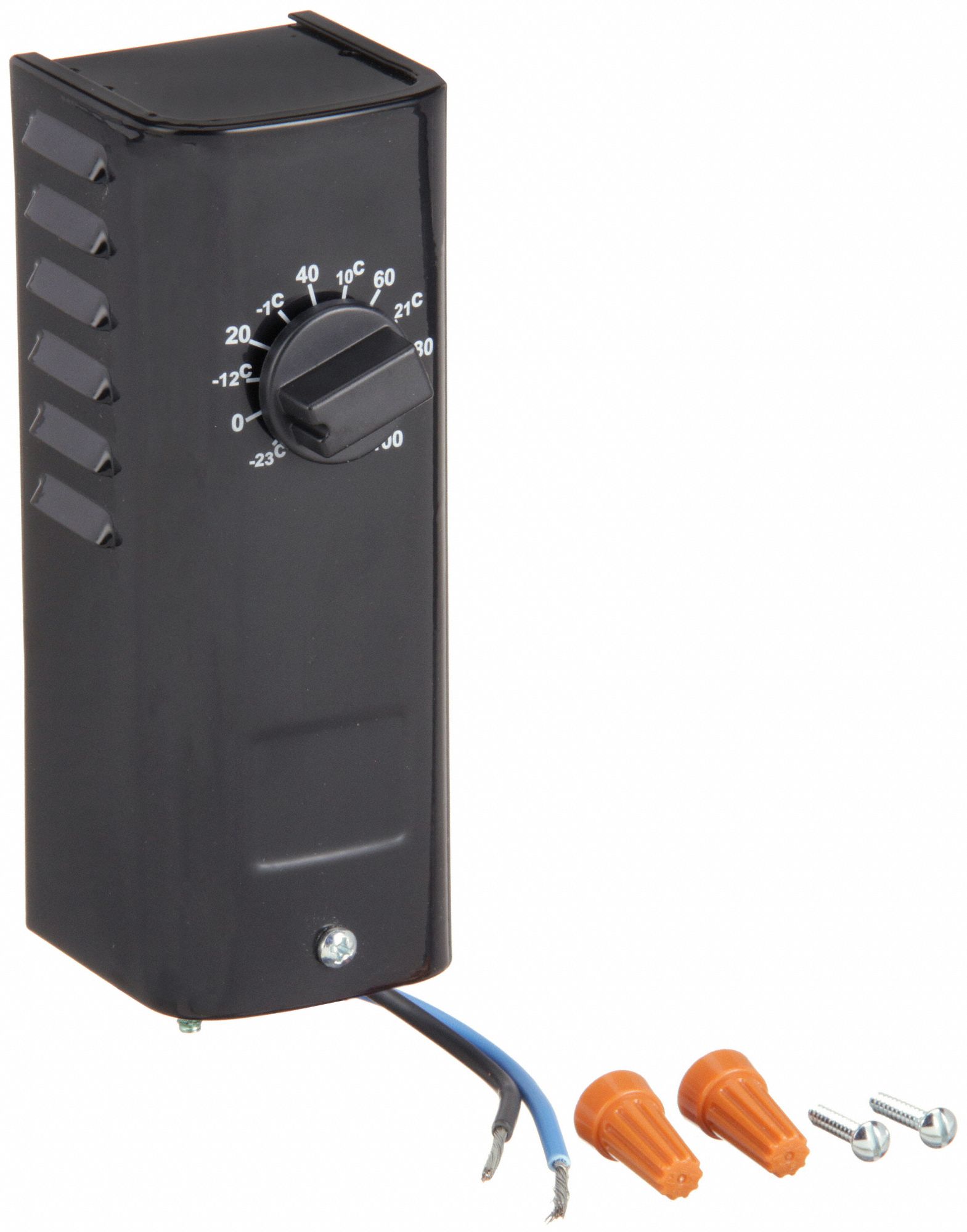

LINE VOLT MECHANICAL THERMOSTAT, COOL ONLY, STEEL, -10 ° TO 100 ° F, 2 ° F, BI-METAL, 120 TO 277V AC

LINE VOLT MECHANICAL THERMOSTAT, COOL ONLY, STEEL, -10 ° TO 100 ° F, 2 ° F, BI-METAL, 120 TO 277V AC

DAYTON

LINE VOLT MECHANICAL THERMOSTAT, COOL ONLY, STEEL, -10 ° TO 100 ° F, 2 ° F, BI-METAL, 120 TO 277V AC close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
LINE VOLT MECHANICAL THERMOSTAT, COOL ONLY, STEEL, -10 ° TO 100 ° F, 2 ° F, BI-METAL, 120 TO 277V AC

LINE VOLT MECHANICAL THERMOSTAT, COOL ONLY, STEEL, -10 ° TO 100 ° F, 2 ° F, BI-METAL, 120 TO 277V AC

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $54.57 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG2E869
  • Mfr. Model # 2E869
  • UNSPSC # 41112209
  • CATALOGUE PAGE # 1911
  • Shipping Weight 1.0 lbs

Technical Specs

  • Item Line Volt Mechanical Thermostat
  • Differential Type Adjustable
  • Enclosure NEMA Rating NEMA 1
  • Maximum Control Temperature 100 Degrees F
  • Minimum Operating Temperature -10 Degrees F
  • Overall Depth 2 3/16 in
  • Overall Width 2 3/16 in
  • Switch Type SPST
  • Temperature Differential 2 Degrees F
  • Voltage 120 to 277V AC
  • Contact Rating Resistive @ 120V 22 A
  • Enclosure Colour Black
  • Full Load Amps @ 120V AC 15 A
  • Includes Contacts that Close on Temperature Rise for Cooling Applications
  • Inductive Amps @ 208V 10 A
  • Lead Length 6 in
  • Number of Switches 1
  • Thermostat Type Line Voltage
  • Application Cool Only
  • Enclosure Material Steel
  • Minimum Control Temperature -10 Degrees F
  • Number of Cooling Stages 1
  • Maximum Operating Temperature 100 Degrees F
  • Overall Height 5 1/2 in
  • Switch Action Close on Rise
  • Temperature Scale Celsius, Fahrenheit
  • Sensor Type Bi-Metal
  • Compatible System Type Gas or Forced Air Furnaces
  • Contact Rating Resistive @ 240V 22 A
  • Enclosure Finish Powder Coated
  • Full Load Amps @ 240V AC 10 A
  • Inductive Amps @ 120V 13.8 A
  • Inductive Amps @ 240V 10 A
  • Number of Poles 1
  • Standards UL Listed
