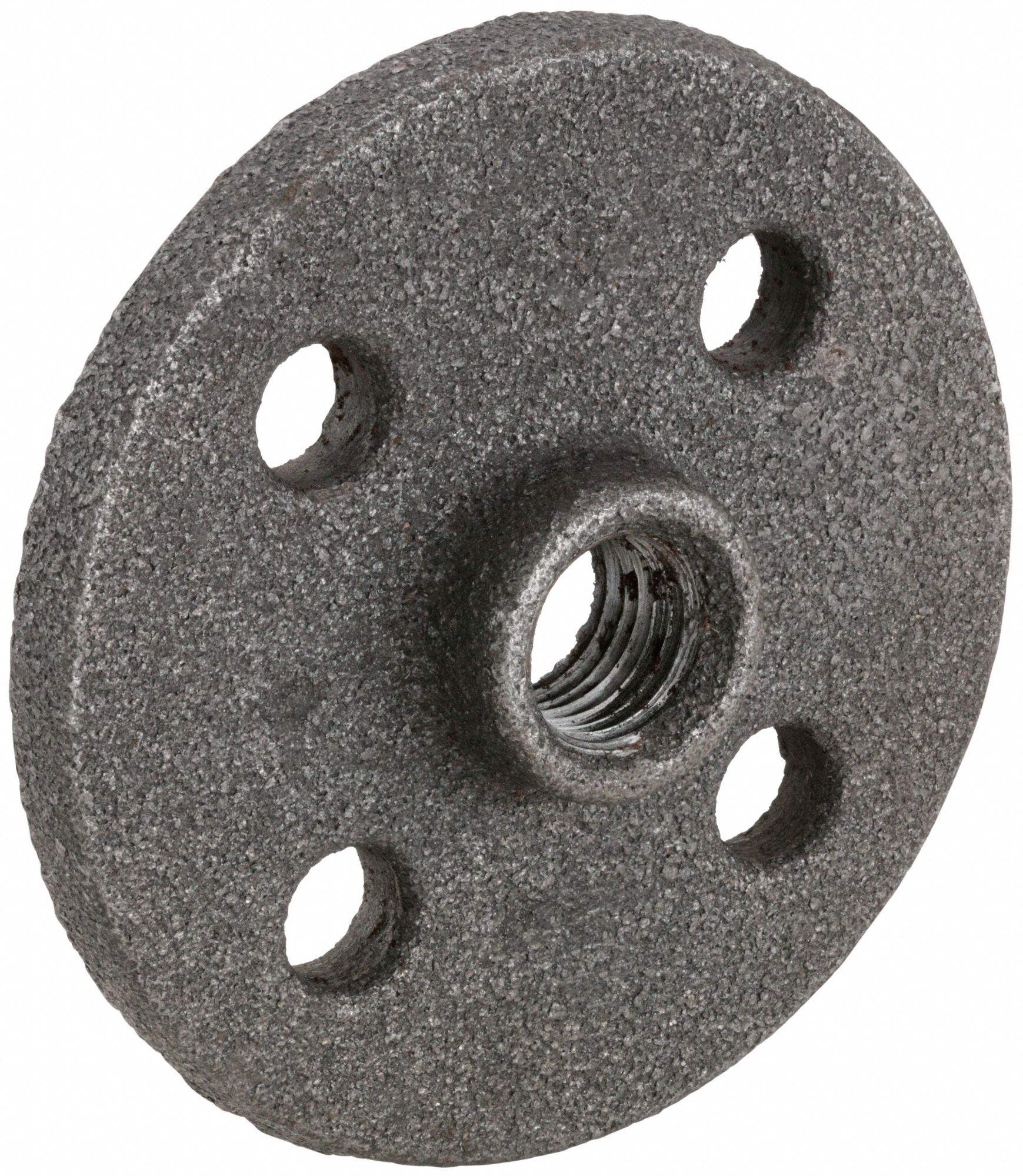

PIPE FLANGE: MALLEABLE IRON, FLOOR FLANGE, 3 IN PIPE SIZE, FLOOR FLANGE, CLASS 150

PIPE FLANGE: MALLEABLE IRON, FLOOR FLANGE, 3 IN PIPE SIZE, FLOOR FLANGE, CLASS 150

APPROVED VENDOR

PIPE FLANGE: MALLEABLE IRON, FLOOR FLANGE, 3 IN PIPE SIZE, FLOOR FLANGE, CLASS 150 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
PIPE FLANGE: MALLEABLE IRON, FLOOR FLANGE, 3 IN PIPE SIZE, FLOOR FLANGE, CLASS 150

PIPE FLANGE: MALLEABLE IRON, FLOOR FLANGE, 3 IN PIPE SIZE, FLOOR FLANGE, CLASS 150

APPROVED VENDOR

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $55.13 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # GGM2WU82
  • Mfr. Model # 521-610
  • UNSPSC # 27121704
  • CATALOGUE PAGE # 1738
  • Shipping Weight 3.76 lbs

Product Details

Maximum pressure 300 PSI, WOG at 150 Degrees F, 150 PSI Saturated Stem. Black fittings are interchangeable with black cast-iron or steel. NPI connections. For low pressure applications including air, water, natural gas and steam. Galvanized fittings resist rust and corrosion.

Technical Specs

  • ItemMetal Pipe Flange
  • Nominal Pipe Size3 in
  • Flange Outside Diameter7 7/8 in
  • Overall Length1 1/16 in
  • ClassClass 150
  • Maximum Operating Pressure300 psi
  • Temp. Range-20 Degrees to 366 Degrees F
  • Bolt Hole Diameter7/16 in
  • StandardsASTM A-197, ASTM A47, ASME B16.3 and B16.4, UL Listed, FM Approved
  • Specific Fitting Shape Floor Flange
  • Fitting Connection Type Flanged x FNPT
  • Flange Thickness 1/4 in
  • Pipe Fitting Material Malleable Iron
  • For Pipe Schedule 40
  • Max. Steam Pressure 150 psi
  • Number of Bolt Holes 4
  • Application Air, Natural Gas, Steam, Non-Potable Water
  • Basic Fitting Shape Flange
