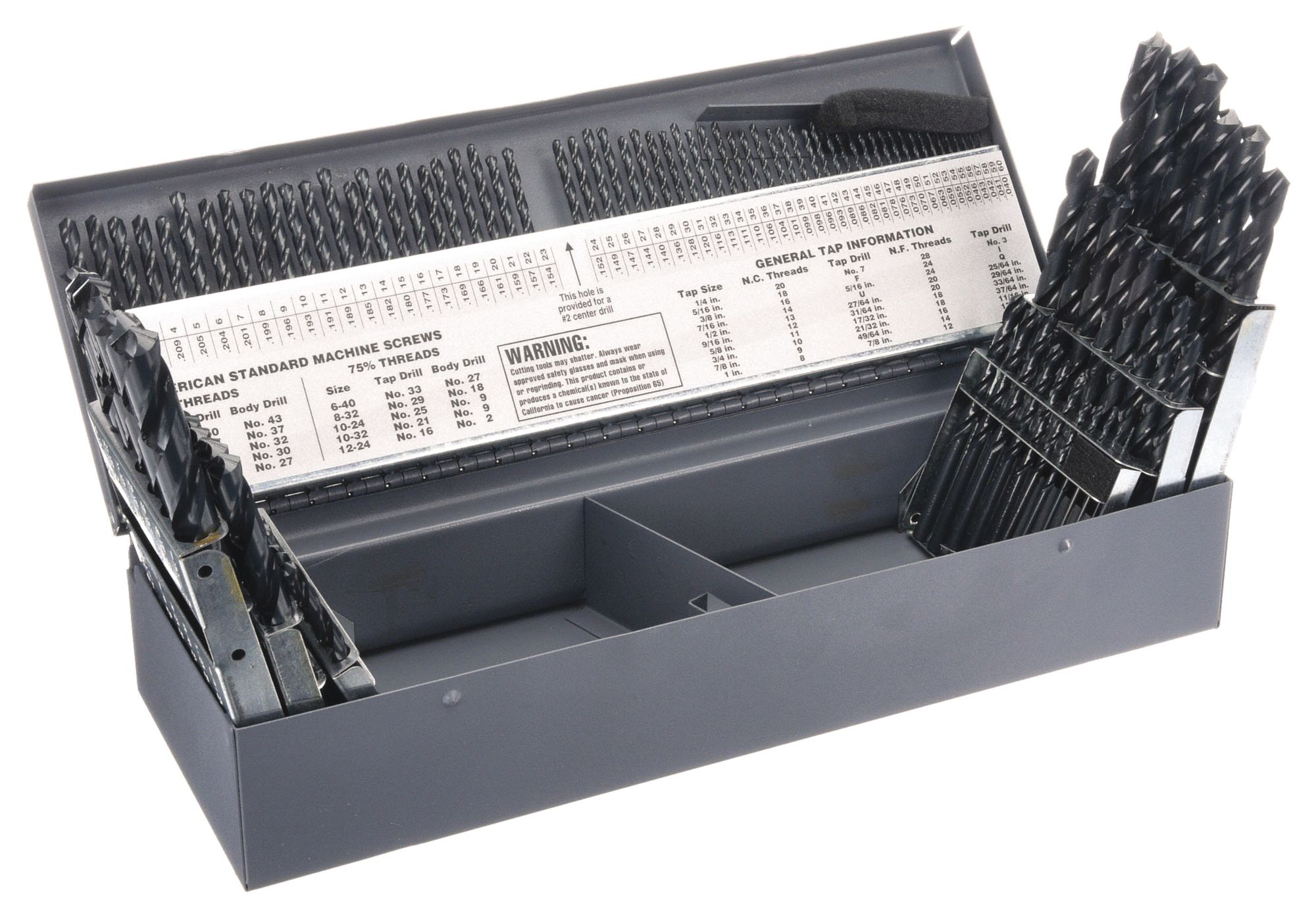

This general purpose jobber drill bit set is made of high speed steel. It includes a metal drill index, is designed for use with all materials, and meets the standards for ASME. This jobber length drill bit set has a black oxide finish, and has fractional inch and metric measurements. It is non-coolant through. Plus it has 114 spiral flutes, a straight shank, and 118 Degrees conventional point.
Technical Specs
ItemJobber Drill Bit Set
Finish - MachiningBlack Oxide
Number of Drill Bits114
Drill Bit Point Angle118 Degrees
Flute TypeSpiral
Cutting DirectionRight Hand
Drill Bit GroupingSet
Shank Type - MachiningStraight
IncludesMetal Drill Index
Aircraft DrillNo
Material Grade - MachiningGeneral Purpose
Drill Bit Size#60 to #1, 1.00 mm to 13.00 mm by 0.50 mm, 1/16 in to 1/2 in by 1/64 in
Smallest Drill Bit Size1/16 in
Material - MachiningHigh Speed Steel
Measurement SystemFractional Inch, Metric
Drill Bit Sizes Included#1, #10, #11, #12, #13, #14, #15, #16, #17, #18, #19, #2, #20, #21, #22, #23, #24, #25, #26, #27, #28, #29, #3, #30, #31, #32, #33, #34, #35, #36, #37, #38, #39, #4, #40, #41, #42, #43, #44, #45, #46, #47, #48, #49, #5, #50, #51, #52, #53, #54, #55, #56, #57, #58, #59, #6, #60, #7, #8, #9, 1.00 mm, 1.50 mm, 1/16 in, 1/2 in, 1/4 in, 1/8 in, 10.00 mm, 10.50 mm, 11.00 mm, 11.50 mm, 11/32 in, 11/64 in, 12.00 mm, 12.50 mm, 13.00 mm, 13/32 in, 13/64 in, 15/32 in, 15/64 in, 17/64 in, 19/64 in, 2.00 mm, 2.50 mm, 21/64 in, 23/64 in, 25/64 in, 27/64 in, 29/64 in, 3.00 mm, 3.50 mm, 3/16 in, 3/32 in, 3/8 in, 31/64 in, 4.00 mm, 4.50 mm, 5.00 mm, 5.50 mm, 5/16 in, 5/32 in, 5/64 in, 6.00 mm, 6.50 mm, 7.00 mm, 7.50 mm, 7/16 in, 7/32 in, 7/64 in, 8.00 mm, 8.50 mm, 9.00 mm, 9.50 mm, 9/32 in, 9/64 in
Drill Bit Point TypeConventional Point
Number of Flutes114
Depth:Dia. Ratio4xD
Drill Length ClassJobber Length
Drill Bit Case TypeMetal Drill Index
StandardsASME B94.11M-1993
Coolant FedNon-Coolant Through
Primary Material ApplicationAll Materials
Largest Drill Bit Size1/2 in
Country of OriginUnited States
(subject to change)
