ONE-HOLE LUG COMPRESSION CONNECTOR, 2 AWG MAX WIRE SIZE, 5/16 IN STUD SIZE

ONE-HOLE LUG COMPRESSION CONNECTOR, 2 AWG MAX WIRE SIZE, 5/16 IN STUD SIZE

APPROVED VENDOR

ONE-HOLE LUG COMPRESSION CONNECTOR, 2 AWG MAX WIRE SIZE, 5/16 IN STUD SIZE close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
ONE-HOLE LUG COMPRESSION CONNECTOR, 2 AWG MAX WIRE SIZE, 5/16 IN STUD SIZE

ONE-HOLE LUG COMPRESSION CONNECTOR, 2 AWG MAX WIRE SIZE, 5/16 IN STUD SIZE

APPROVED VENDOR

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $7.10 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # GGE29YK85
  • Mfr. Model # 29YK85
  • UNSPSC # 39121405
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.04 lbs

Product Details

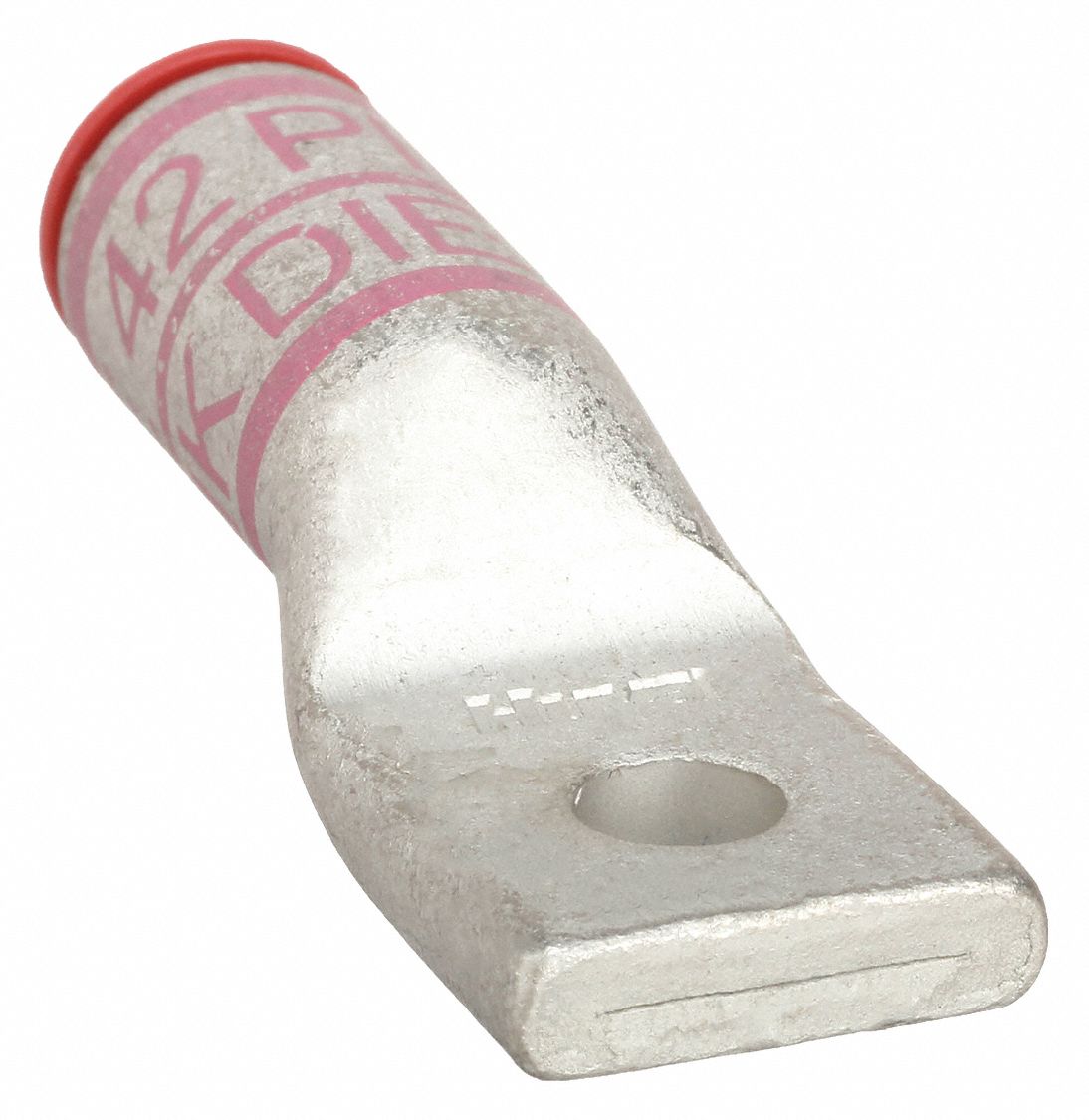

This one-hole lug compression connector measures 0.72 inch W x 2.07 inch L. This one-hole lug compression connector meets the standards for UL. It is made of aluminum with a tin finish, and is for 2 AWG wire. This one-hole lug compression connector features: corrosion resistant.

Technical Specs

  • ItemOne-Hole Lug Compression Connector
  • Colour CodePink
  • Tongue AngleStraight
  • For Conductor MaterialAluminum
  • For Stranded Copper Wire Size - Minimum2 AWG
  • Inspection HoleNo
  • Maximum Voltage600V AC
  • Seam StyleSeamless
  • Number of Holes1
  • Barrel Inside Diameter0.31 in
  • Barrel StyleChamfered
  • Contact FinishTin
  • For Wire Size2 AWG
  • Hole Center to End0.44 in
  • Overall Length2.07 in
  • Special FeaturesCorrosion Resistant
  • Stud Size5/16 in
  • Tongue StyleStandard
  • Barrel Size Short
  • Die Code 42
  • Tongue Width 0.72 in
  • For Stud Size 5/16 in
  • For Stranded Copper Wire Size - Maximum 2 AWG
  • Material Aluminum
  • Termination Style Crimp
  • Standards UL Listed
  • RoHS Compliant Yes
  • Barrel Outside Diameter 0.51 in
  • Connector Type Straight Barrel
  • Current 135 A
  • For Wire Type Stranded
  • Hole Size 0.335 in
  • Overall Width 0.72 in
  • Strip Length 15/16 in
  • Tongue Length 0.91 in
  • Tongue Thickness 0.19 in
  • Country of Origin China (subject to change)
