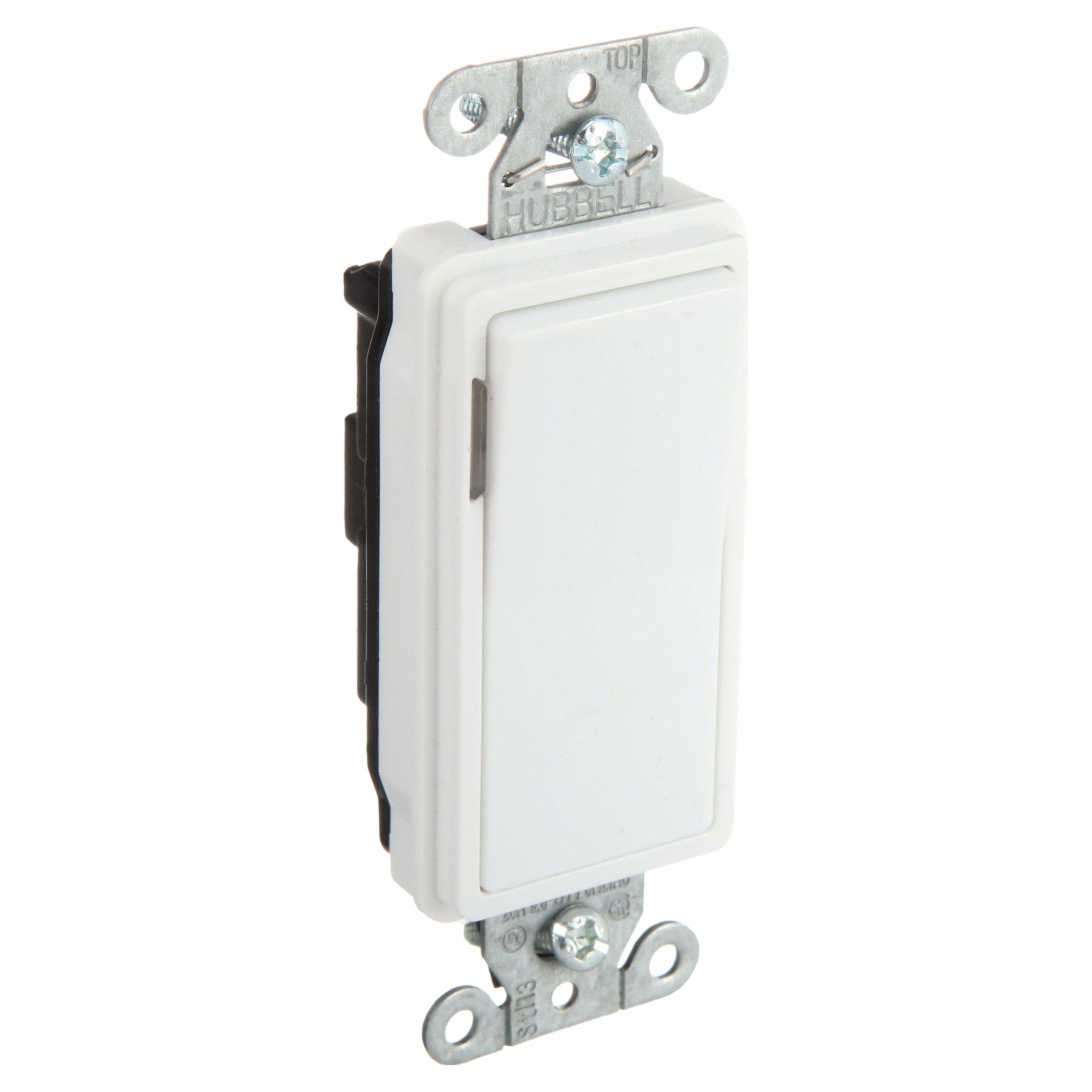

This illuminated wall switch has a voltage rating of 120/277V AC, and an operating temperature range of -40 Degrees F to 75 Degrees C. It is: impact resistant, plus it measures 1.4 inch W x 1.5 inch H. This illuminated wall switch meets the standards for UL. It is white, and has 14 AWG minimum wire size to 10 AWG maximum wire size. This illuminated wall switch features: automatic self-grounding staple.
Technical Specs
ItemIlluminated Wall Switch
Current Rating20 A
Switch FunctionMaintained
Voltage Rating120/277V AC
Horsepower Rating1 hp
Minimum Wire Size14 AWG
Resistance PropertiesImpact Resistant
Switch StyleRocker
FeaturesAutomatic Self-Grounding Staple
Housing MaterialThermoplastic
Maximum Operating Temperature75 Degrees C
Overall Height1.5 in
Switch MaterialThermoplastic
ColourWhite
IlluminatedYes
Switch TypeSingle Pole
Wiring MethodBack, Side
Maximum Wire Size10 AWG
Number of Switches1
StandardsUL Listed
Wire Connection TypeScrew Terminals
GroundingGrounded
MarketCommercial
Minimum Operating Temperature-40 Degrees F
Overall Width1.4 in
Country of OriginUnited States
(subject to change)
