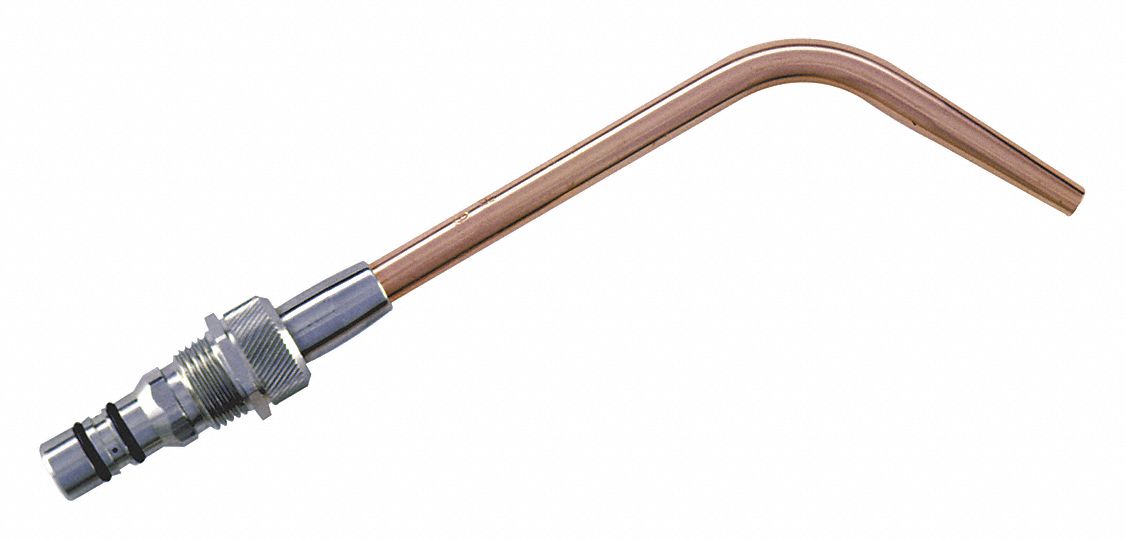

WELDING TIP ASSEMBLY, SIZE 9, FOR ACETYLENE, MW209

WELDING TIP ASSEMBLY, SIZE 9, FOR ACETYLENE, MW209

MILLER-SMITH EQUIPMENT

WELDING TIP ASSEMBLY, SIZE 9, FOR ACETYLENE, MW209 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
WELDING TIP ASSEMBLY, SIZE 9, FOR ACETYLENE, MW209

WELDING TIP ASSEMBLY, SIZE 9, FOR ACETYLENE, MW209

MILLER-SMITH EQUIPMENT

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $157.54 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # SMWMW209
  • Mfr. Model # MW209
  • UNSPSC # 23271711
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.6 lbs

Product Details

MW200 series oxyacetylene medium-duty welding tips Pipeliner. For general purpose medium-duty welding or brazing which features "soft-flame" for easier puddle control and better penetration. Tips are bent to 63-1/2 Degrees angle. Used with medium-duty torch handles.

Technical Specs

  • Item Welding Tip
  • Tip Series MW200
  • Drill Size 49
  • Maximum Welding Thickness 3/8 in
  • Application Welding
  • Flame Type Soft
  • Maximum Fuel Flow Rate 23 scfh
  • Overall Length 9 in
  • Tip Angle 63.5 Degrees
  • Compatible Fuel Type Acetylene
  • Compatible Torch Series MW200
  • Tip Size 9
  • Compatible Manufacturer Smith
  • Compatible Torch Manufacturer Part Number CW5A, MW5A, WH100
  • Fuel Pressure Rating (Maximum) 10 psi (Acetylene)
  • Maximum Oxygen Flow Rate 23 scfh
  • Oxygen Pressure Rating (Maximum) 10 psig
