PUMP MOTOR,CSCR,1.5 HP,3450,115/230

PUMP MOTOR,CSCR,1.5 HP,3450,115/230

MARATHON

PUMP MOTOR,CSCR,1.5 HP,3450,115/230 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
PUMP MOTOR,CSCR,1.5 HP,3450,115/230

PUMP MOTOR,CSCR,1.5 HP,3450,115/230

MARATHON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $493.72 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # AOSC1465
  • Mfr. Model # C1465
  • UNSPSC # 26101602
  • CATALOGUE PAGE # 9
  • Shipping Weight 28.8 lbs

Product Details

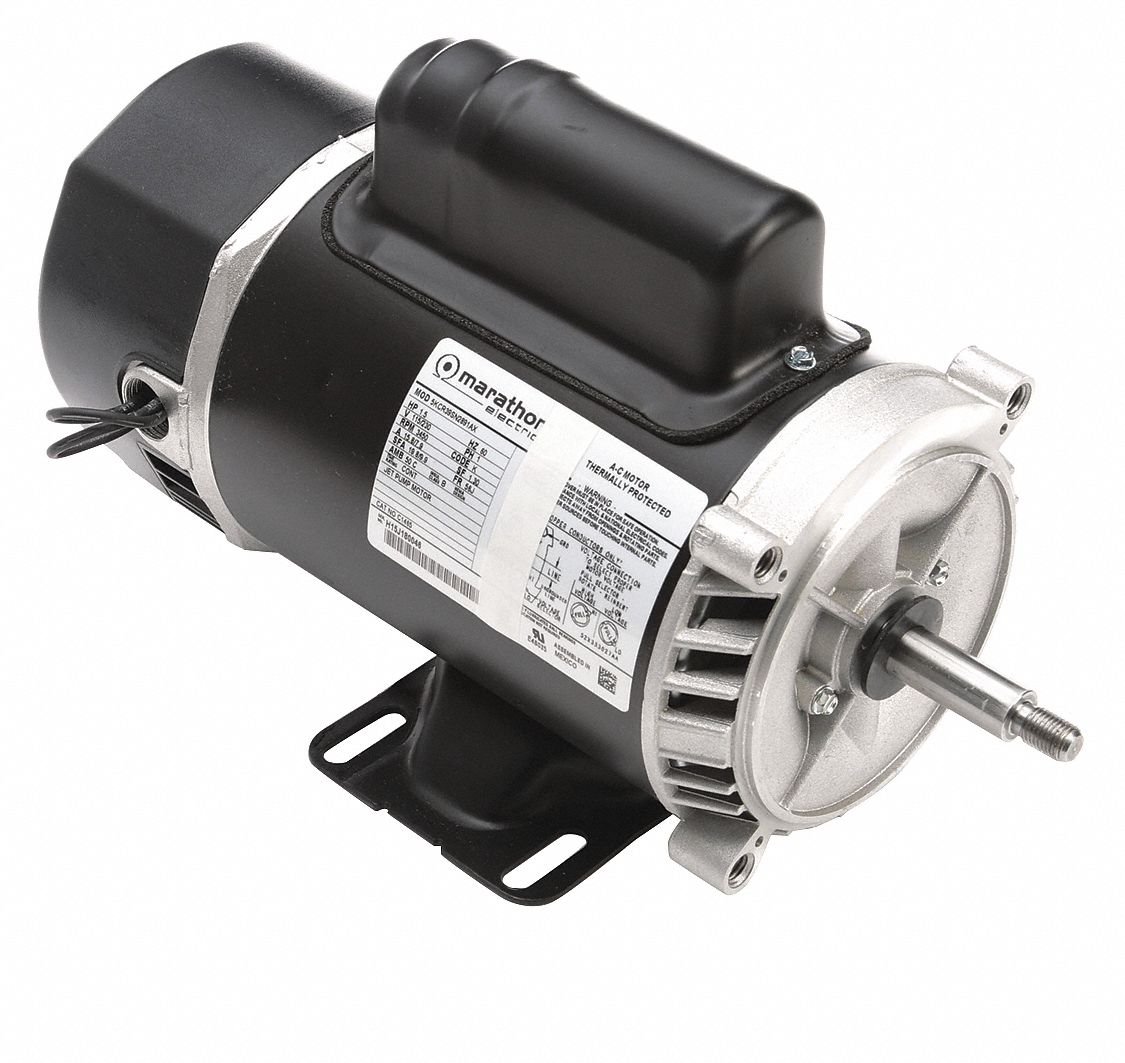

1-Phase open dripproof jet pump motor, CSCR, 1.5 HP, 3,450 nameplate RPM, 115/230 voltage, capacitor start motor, face mount.

Technical Specs

  • ItemJet Pump Motor
  • Bolt Circle Dia.2 15/16"
  • FinishBlack
  • Hz60
  • Height8 7/16 in
  • Ins. ClassB
  • Max. Ambient Temp.50 Degrees C
  • Motor BearingsBall
  • Motor Efficiency GroupStandard Efficient
  • Motor Frame MaterialSteel
  • Motor Mounting TypeFace/Base
  • Motor Shaft DesignThreaded
  • Motor Sub ApplicationJet Pump
  • Nameplate RPM3,450
  • No. of Speeds1
  • Phase1
  • Shaft Dia.5/8"
  • Shaft MaterialStainless Steel
  • Stator TypeCapacitor-Start
  • Usable @ 208VNo
  • Voltage Compatibility115, 120, 230, 240, 115/230, 120/240
  • Body Dia. 6.42"
  • Duty Cycle Continuous
  • Frame 56J
  • Full Load Amps 15.8/7.9
  • HP 1.5
  • Length Less Shaft 11 9/16"
  • Motor Application Pump
  • Motor Design Capacitor-Start
  • Motor Enclosure Design Open Dripproof
  • Motor Mounting Position All Angle
  • Motor Service Factor 1.30
  • Motor Shaft Rotation CCWSE
  • Motor Thermal Protection Auto
  • Nominal Efficiency 75.5%
  • Overall Length 14"
  • RPM Range 2,350 - 3,600
  • Shaft Length 2-3/8"
  • Standards UL Recognized (E14133), CSA Certified (MC161850)
  • Usable @ 200V No
  • Voltage 115/230
  • Weight 21 lb
