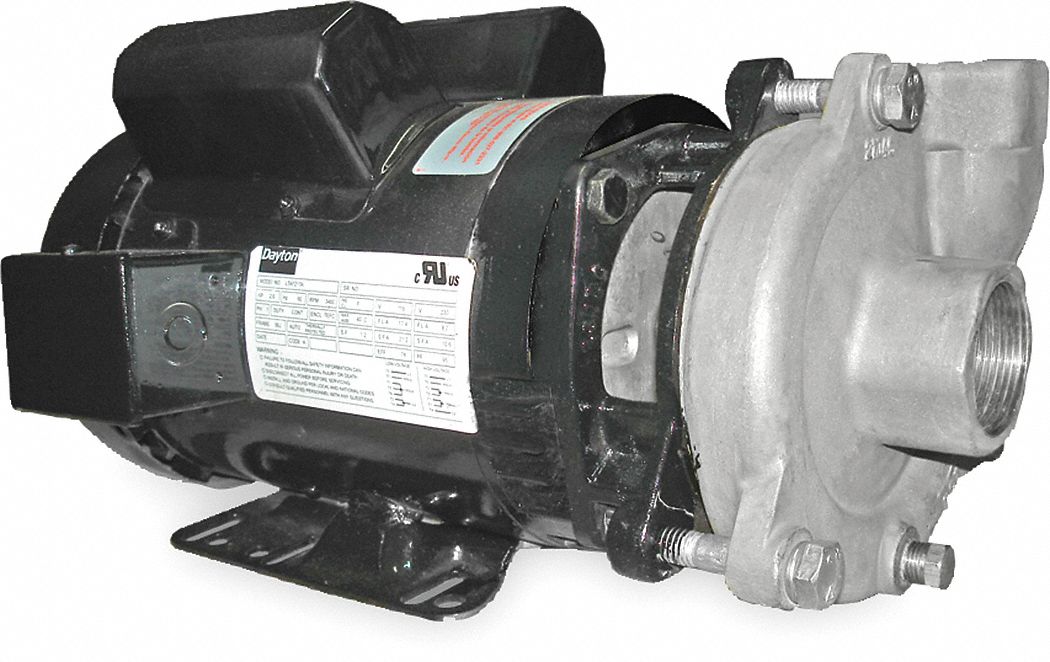

PUMP,CENTRIFUGAL, 3 HP, 1 PH, 230V

PUMP,CENTRIFUGAL, 3 HP, 1 PH, 230V

DAYTON

PUMP,CENTRIFUGAL, 3 HP, 1 PH, 230V close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
PUMP,CENTRIFUGAL, 3 HP, 1 PH, 230V

PUMP,CENTRIFUGAL, 3 HP, 1 PH, 230V

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $1,640.17 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # GGM2ZWX1
  • Mfr. Model # 2ZWX1
  • UNSPSC # 40151503
  • CATALOGUE PAGE # N/A
  • Shipping Weight 70.75 lbs

Technical Specs

  • ItemCentrifugal Pump
  • Pump Housing MaterialStainless Steel
  • Nameplate Voltage230V AC
  • Flow Rate @ 60 ft of Head (Maximum)82 gpm
  • Maximum Feet of Head74 ft
  • Intake TypeNPT
  • Discharge TypeNPT
  • Maximum Flow Rate170 gpm
  • Flow Rate @ 10 ft of Head (Maximum)170 gpm
  • Flow Rate @ 20 ft of Head (Maximum)162 gpm
  • Flow Rate @ 50 ft of Head (Maximum)110 gpm
  • Flow Rate @ 120 ft of Head (Maximum)Not Applicable
  • Flow Rate @ 160 ft of Head (Maximum)Not Applicable
  • Best Efficiency Head57 ft
  • Compatible with Media TypeNon-Flammable Liquids
  • Duty CycleContinuous
  • Feet of Head (Minimum)10 ft
  • Flow Rate @ 1 ft of Head (Maximum)Not Applicable
  • Flow Rate @ 200 ft of Head (Maximum)Not Applicable
  • Flow Rate @ 240 ft of Head (Maximum)Not Applicable
  • Flow Rate @ 280 ft of Head (Maximum)Not Applicable
  • Flow Rate @ 90 ft of Head (Maximum)Not Applicable
  • Frequency60 Hz
  • Impeller MaterialStainless Steel
  • Manufacturer Warranty Length1 yr
  • Minimum Media Temperature40 Degrees F
  • Motor TypeCapacitor-Start
  • Overall Length17.5 in
  • Pumping ApplicationAggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
  • Seal TypeMechanical
  • Shut Off Pressure (Maximum)32 psi
  • Specific Gravity (Maximum)1
  • Wetted MaterialCarbon, Ceramic, Stainless Steel, Viton
  • Phase Single
  • Horsepower 3 hp
  • Flow Rate @ 40 ft of Head (Maximum) 130 gpm
  • Flow Rate @ 80 ft of Head (Maximum) Not Applicable
  • Compatible Intake Pipe Size 2 in
  • Compatible Discharge Pipe Size 1 1/2 in
  • Motor Enclosure Totally Enclosed Fan Cooled
  • Flow Rate @ 5 ft of Head (Maximum) Not Applicable
  • Flow Rate @ 15 ft of Head (Maximum) 166 gpm
  • Flow Rate @ 30 ft of Head (Maximum) 146 gpm
  • Flow Rate @ 100 ft of Head (Maximum) Not Applicable
  • Flow Rate @ 140 ft of Head (Maximum) Not Applicable
  • Seal Material Viton
  • Best Efficiency Flow 95 gpm
  • Discharge Rotation 90 Degrees Increments
  • Features Continuous High Pressure Circulation
  • Minimum Flow Rate 35 gpm
  • Flow Rate @ 180 ft of Head (Maximum) Not Applicable
  • Flow Rate @ 220 ft of Head (Maximum) Not Applicable
  • Flow Rate @ 260 ft of Head (Maximum) Not Applicable
  • Flow Rate @ 300 ft of Head (Maximum) Not Applicable
  • For Use With Potable Systems No
  • Impeller Design Semi-Open
  • Includes Manual
  • Maximum Media Temperature 200 Degrees F
  • Motor Frame Designation 56J
  • Overall Height 7 in
  • Overall Width 8 in
  • Maximum RPM 3,450 RPM
  • Shaft Material 304 Stainless Steel
  • Solid Diameter (Maximum) 0.5 in
  • Standards cULus Listed
  • Country of Origin India (subject to change)
