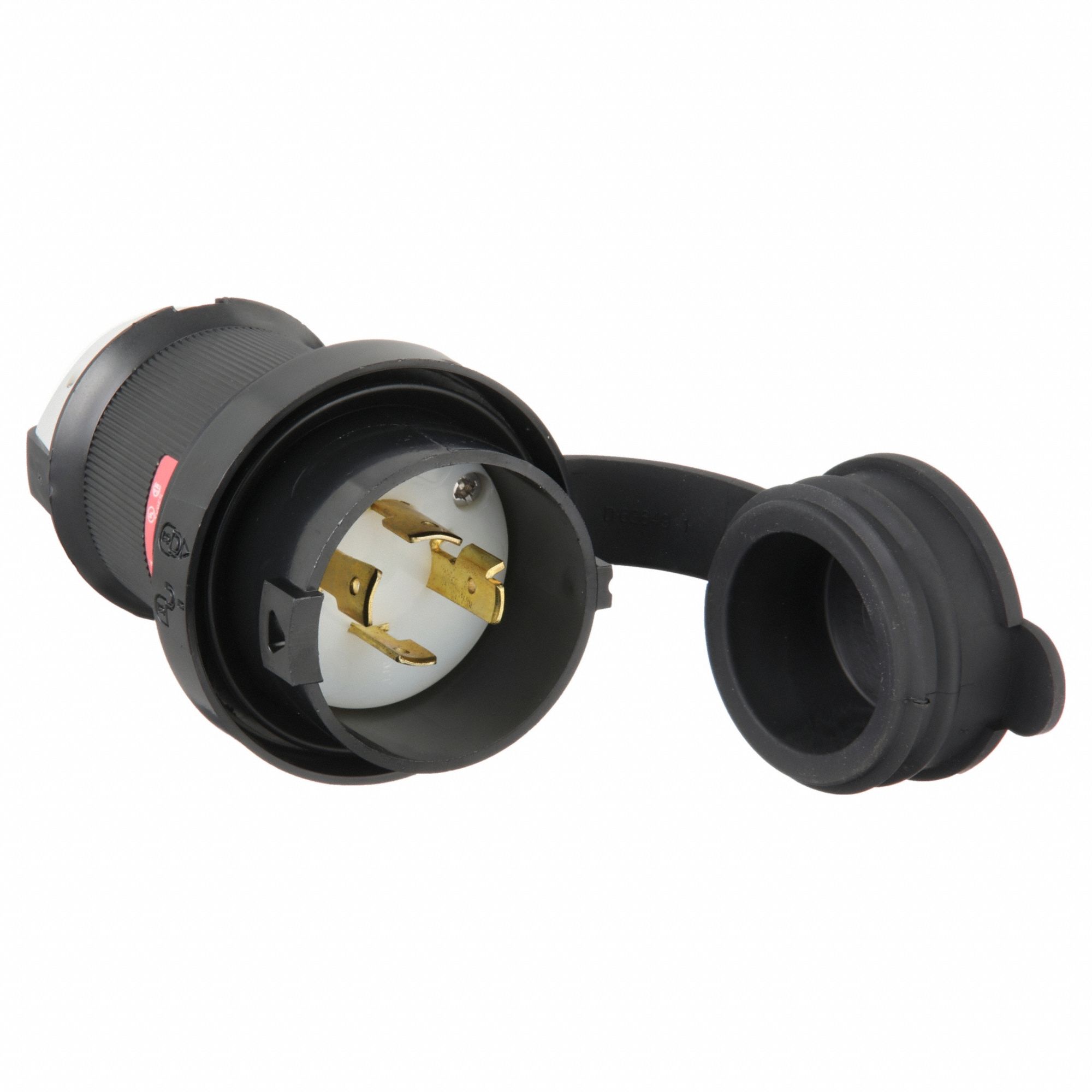

WATERTIGHT LOCKING PLUG, L16-20P, 20 A, 480V AC, WHITE, 3 POLES

WATERTIGHT LOCKING PLUG, L16-20P, 20 A, 480V AC, WHITE, 3 POLES

HUBBELL WIRING DEVICE-KELLEMS

WATERTIGHT LOCKING PLUG, L16-20P, 20 A, 480V AC, WHITE, 3 POLES close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
WATERTIGHT LOCKING PLUG, L16-20P, 20 A, 480V AC, WHITE, 3 POLES

WATERTIGHT LOCKING PLUG, L16-20P, 20 A, 480V AC, WHITE, 3 POLES

HUBBELL WIRING DEVICE-KELLEMS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $186.97 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # HBLHBL2431SW
  • Mfr. Model # HBL2431SW
  • UNSPSC # 26121624
  • CATALOGUE PAGE # 87
  • Shipping Weight 1.0 lbs

Product Details

Comes with: Universal neoprene diaphragm seal and panel or box mount receptacles and inlets. Safety-shrouds eliminate bent plug blades, reduce exposure to arcing when connecting or disconnecting under load and provide extra protection to personnel.

Technical Specs

  • Item Watertight Locking Plug
  • Current Rating 20 A
  • Housing Material Polybutylene Terephthalate
  • Number of Blades 4
  • Phase Three
  • Resistance Properties Chemical Resistant, Impact Resistant, Watertight
  • Wire Connection Type Screw Terminals
  • Face Diameter 2.77 in
  • For Minimum Cable Diameter 0.35 in
  • Horsepower Rating 5 hp
  • Market Industrial
  • Standards CSA Certified Type 4, UL Listed
  • Blade Material Brass
  • Maximum Operating Temperature 75 Degrees C
  • Minimum Operating Temperature -40 Degrees C
  • Overall Length 2.94 in
  • Connection Orientation Straight
  • Housing Colour White
  • NEMA Plug Configuration L16-20P
  • Number of Poles 3
  • Polarized Yes
  • Voltage Rating 480V AC
  • Wiring Style Standard
  • For Maximum Cable Diameter 1.15 in
  • Grounding Grounded
  • IP Rating IP66
  • Shrouded Yes
  • UL 94 Flammability Rating V-0
  • Body Length 2.94 in
  • Maximum Wire Size 8 AWG
  • Minimum Wire Size 16 AWG
