MULTIMETER DIGITAL TRUE RMS W/BKLIT

FLUKE

Web Price : $847.96 / EACH

Compliance and Restrictions

SDS View the Safety Data Sheet (SDS) for this item

Compare

Availability

Pick Up

Shipping

Item # FET177
Mfr. Model # FLUKE-177 ESFP
UNSPSC # 41113630
CATALOGUE PAGE # 150
Shipping Weight 3.51 lbs

Product Details

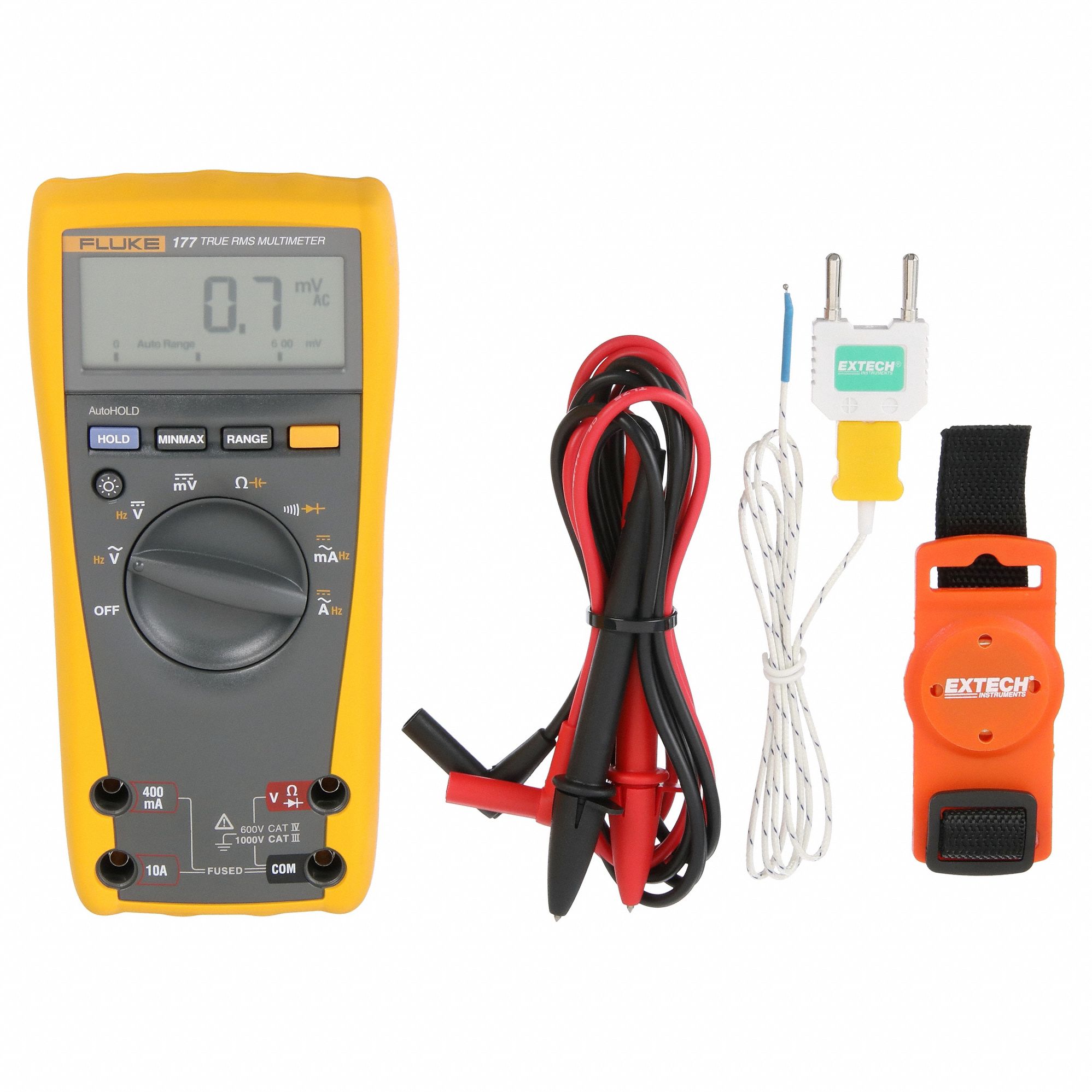

Digital multimeter, true RMS AC voltage and current, auto ranging volts, amps and ohms, frequency and capacitance capabilities, min/max/average, and a 6000 count digital display with digital bargraph. Backlight and battery access door.

Technical Specs

ItemDigital Multimeter
Basic AC Voltage Accuracy+/-(1.0% + 3)
Data HoldYes
Instrument Safety RatingCAT IV 600 V, CAT III 1,000 V
Maximum DC Voltage Measurement1,000 V
Special FeaturesClosed Case Calibration Through Front Panel, Ergonomic Case with Integrated Protective Holster
Calibration Certificate IncludedNo
Multimeter StyleFull Size - Basic Features
Capacitance Measurement Accuracy+/-(1.2% + 2)
Bluetooth CompatibleNo
DustproofNo
Removable ScreenNo
WaterproofNo
AC Response CalculationTRMS
Auto Power OffYes
Bar Graph IncludedYes
Battery AccessYes
Battery Size9V
Capacitance Measurement Resolution1 nF
Data LoggingYes
Diode TestYes
Frequency Measurement Resolution0.01 Hz
Includes(1 Pair) Test Leads, 9V Battery (Installed), Quick Reference Guide
Maximum Capacitance Measurement10,000 uF
Maximum Operating Temperature122 Degrees F
Maximum Storage Temperature140 Degrees F
Min-Max-Avg Button IncludedYes
Minimum AC Voltage Measurement0 V
Minimum DC Current Measurement0 A
Minimum Frequency Measurement0.01 Hz
Minimum Storage Temperature-22 Degrees F
Minimum/Maximum MemoryYes
Overall Width3.5 in
StandardsEN 61010-1, UL, CSA, TUV, VDE Pending

Audible Continuity Yes
Basic DC Voltage Accuracy +/-0.09% + 2 Digits
Basic DC Current Accuracy +/-(1.0% + 3)
Maximum AC Voltage Measurement 1,000 V
Instrument Counts 6,000
Maximum AC Current Measurement 10 A
Maximum DC Current Measurement 10 A
Basic AC Current Accuracy +/-(1.5% + 3)
Frequency Measurement Accuracy +/-(0.1% + 1)
Current Leakage Testing No
Intrinsically Safe No
Thermal Imaging No
Parameters Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance
Resistance Measurement Accuracy +/-0.9%
Auto Ranging Yes
Batteries Included Yes
Battery Chemistry Alkaline
Battery Voltage 9V
Computer Interface Connection Type None
Depth 7.3 in
Display Type Backlit LCD
Fuse Access Yes
Manufacturers Warranty Length Lifetime
Maximum Frequency Measurement 100 kHz
Maximum Resistance Measurement 50 megaohm
Maximum Temperature Measurement 122 Degrees F
Minimum AC Current Measurement 0 A
Minimum Capacitance Measurement 1 nF
Minimum DC Voltage Measurement 0 V
Minimum Operating Temperature 14 Degrees F
Minimum Temperature Measurement 14 Degrees F
Overall Height 1.7 in
Software Included No
Weight 420 g
Country of Origin United States (subject to change)
