MOTOR,2 HP,PUMP

MOTOR,2 HP,PUMP

MARATHON

MOTOR,2 HP,PUMP close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
MOTOR,2 HP,PUMP

MOTOR,2 HP,PUMP

MARATHON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $643.56 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # AOSK225
  • Mfr. Model # K225
  • UNSPSC # 26101602
  • CATALOGUE PAGE # N/A
  • Shipping Weight 27.95 lbs

Product Details

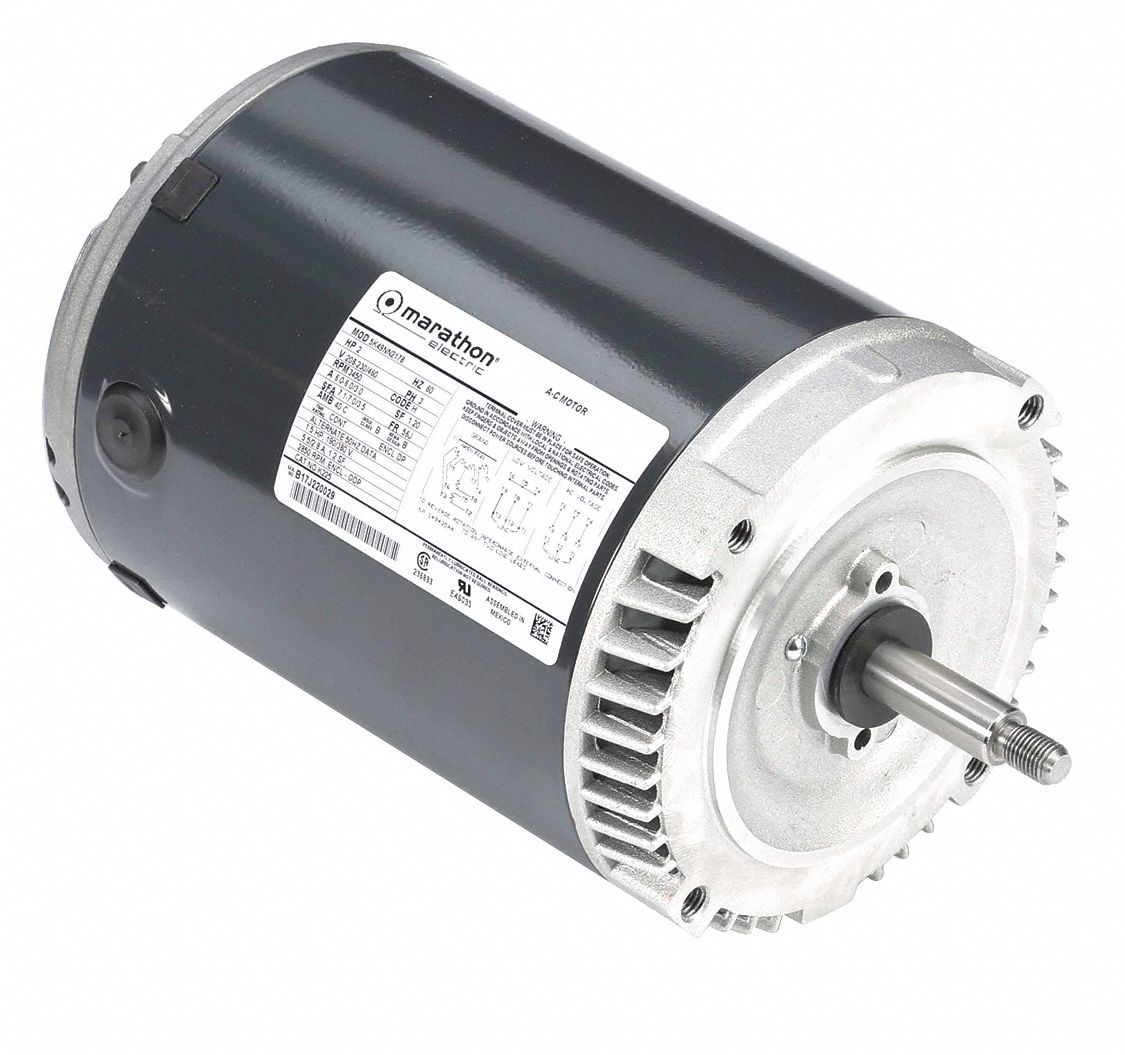

3-Phase open drip proof jet pump motor, 2 HP, 3,450 RPM, 208-230/460 voltage, face mount.

Technical Specs

  • ItemJet Pump Motor
  • Bolt Circle Dia.2 15/16"
  • Frame56J
  • Full Load Amps6.0 - 6.0/3.0
  • HP2
  • Ins. ClassB
  • Max. Ambient Temp.40 Degrees C
  • Motor BearingsBall
  • Motor Efficiency GroupStandard Efficient
  • Motor Frame MaterialSteel
  • Motor Mounting TypeFace
  • Motor Shaft DesignThreaded
  • Motor Sub ApplicationJet Pump
  • NEMA DesignB
  • Nominal Efficiency80.0%
  • Number of Wires1
  • Phase3
  • Shaft Dia.5/8"
  • Shaft MaterialStainless Steel
  • Stator Type3-Phase
  • Usable @ 208VYes
  • Voltage Compatibility208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
  • Body Dia. 6.42"
  • Duty Cycle Continuous
  • Hz 60
  • Height 6 7/16 in
  • Includes Shaft Slinger and Gasketed Conduit Box
  • Length Less Shaft 9 7/16"
  • Motor Application Pump
  • Motor Design 3-Phase
  • Motor Enclosure Design Open Dripproof
  • Motor Mounting Position All Angle
  • Motor Service Factor 1.20
  • Motor Shaft Rotation CW/CCW
  • Motor Thermal Protection None
  • Nameplate RPM 3,450
  • No. of Speeds 1
  • Overall Length 11-7/8"
  • RPM Range 2,350 - 3,600
  • Shaft Length 2-3/8"
  • Standards UL Recognized, CSA Certified
  • Usable @ 200V No
  • Voltage 208 - 230/460
  • Weight 27 lb

Compliance and Restrictions

  • None

SDS Document Not Found

For assistance please contact the SDS Coordinator by email at productcompliance@grainger.ca

Accessories

Alternate Search Terms

Pump Motors (153)
