JET PUMP MOTOR, OPEN DRIPPROOF, FACE/BASE MOUNTING, 1 HP, 3,450 NAMEPLATE RPM, 115/230 V AC, 1

JET PUMP MOTOR, OPEN DRIPPROOF, FACE/BASE MOUNTING, 1 HP, 3,450 NAMEPLATE RPM, 115/230 V AC, 1

MARATHON

JET PUMP MOTOR, OPEN DRIPPROOF, FACE/BASE MOUNTING, 1 HP, 3,450 NAMEPLATE RPM, 115/230 V AC, 1 close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
JET PUMP MOTOR, OPEN DRIPPROOF, FACE/BASE MOUNTING, 1 HP, 3,450 NAMEPLATE RPM, 115/230 V AC, 1

JET PUMP MOTOR, OPEN DRIPPROOF, FACE/BASE MOUNTING, 1 HP, 3,450 NAMEPLATE RPM, 115/230 V AC, 1

MARATHON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $474.74 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # AOSC1464
  • Mfr. Model # C1464
  • UNSPSC # 26101602
  • CATALOGUE PAGE # 9
  • Shipping Weight 27.3 lbs

Product Details

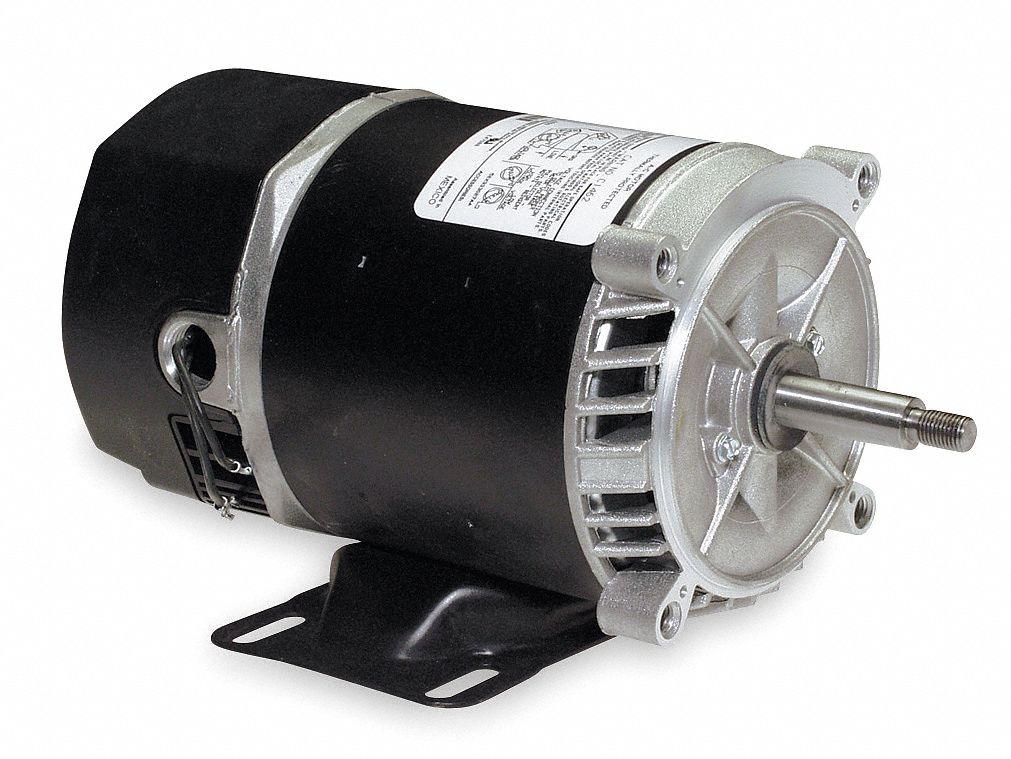

1-Phase open dripproof jet pump motor, 1 HP, 3,450 nameplate RPM, 115/230 voltage, capacitor start motor, face mount.

Technical Specs

  • ItemJet Pump Motor
  • Motor Enclosure DesignOpen Dripproof
  • Frame56J
  • Motor Shaft RotationCCWSE
  • Nameplate RPM3,450
  • Hz60 Hz
  • Motor Efficiency GroupStandard Efficient
  • Ins. ClassB
  • Motor ApplicationPump
  • No. of Speeds1
  • Shaft Length2 3/8 in
  • Voltage115/230V AC
  • Max. Ambient Temp.50 Degrees C
  • Body Dia.6 in
  • Length Less Shaft11 9/16 in
  • Motor Service Factor1.4
  • Nominal Efficiency72 %
  • Shaft MaterialStainless Steel
  • Usable @ 200VNo
  • FinishBlack
  • CC NumberCC003A
  • Duty CycleContinuous
  • Motor Design Capacitor-Start
  • HP 1
  • Motor Mounting Type Face/Base
  • Phase Single
  • Full Load Amps 14.2/7.1
  • Motor Frame Material Steel
  • Motor Mounting Position All Angle
  • Motor Thermal Protection Auto
  • Motor Sub Application Jet Pump
  • Shaft Dia. 5/8 in
  • Standards UL Recognized (E14133), CSA Certified (MC161850)
  • Weight 26 lb
  • Includes Shaft Slinger
  • Lead Length 4 in, 6 in
  • Motor Bearings Ball
  • Motor Shaft Design Threaded
  • Overall Length 14 in
  • Stator Type Capacitor-Start
  • Usable @ 208V No
  • Bolt Circle Dia. 4 1/2 in
  • Conduit Box Location Exterior
  • Country of Origin Mexico (subject to change)
