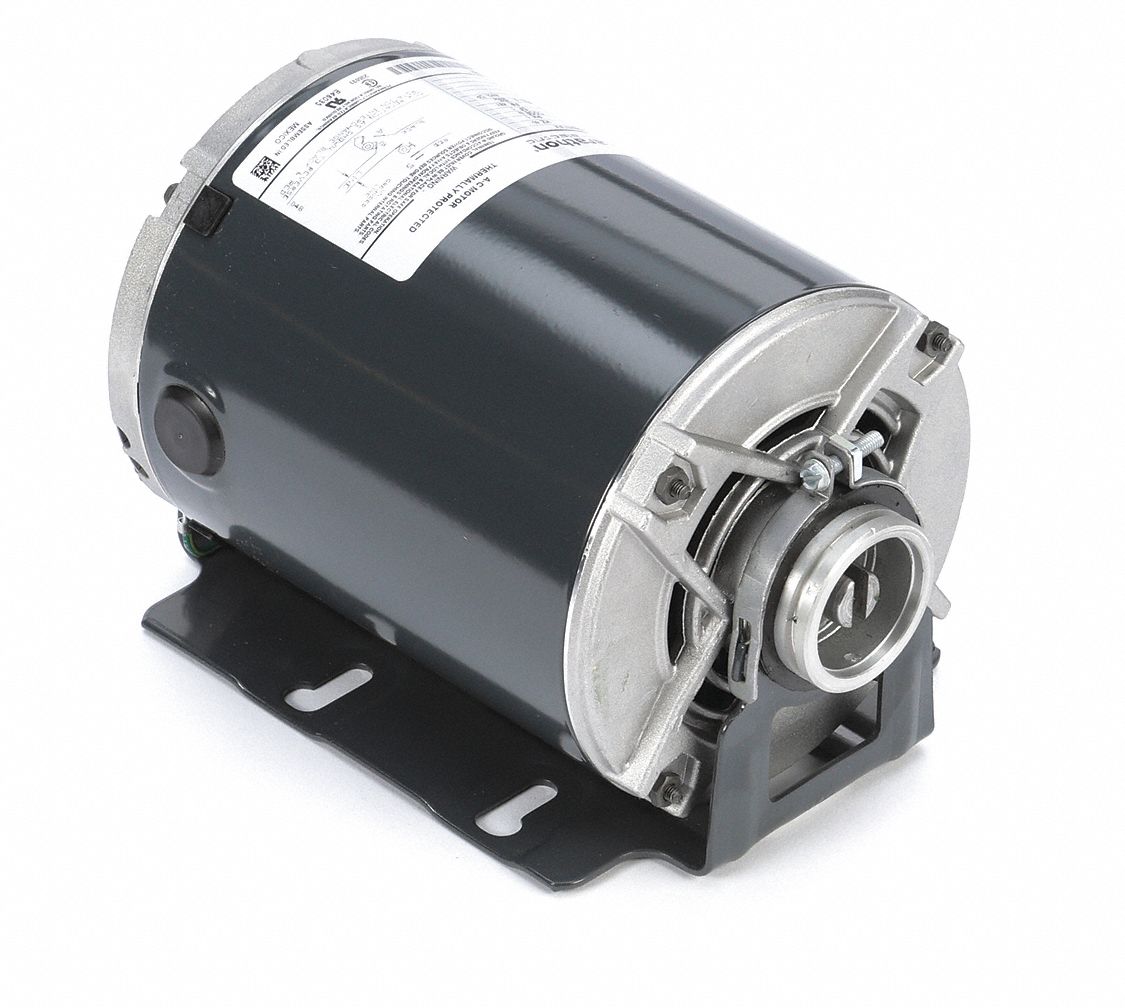

CARBONATOR PUMP MOTOR, CRADLE BASE MOUNTING, 1/2 HP, 1,725 NAMEPLATE RPM, 115 V AC

CARBONATOR PUMP MOTOR, CRADLE BASE MOUNTING, 1/2 HP, 1,725 NAMEPLATE RPM, 115 V AC

MARATHON MOTORS

CARBONATOR PUMP MOTOR, CRADLE BASE MOUNTING, 1/2 HP, 1,725 NAMEPLATE RPM, 115 V AC close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
CARBONATOR PUMP MOTOR, CRADLE BASE MOUNTING, 1/2 HP, 1,725 NAMEPLATE RPM, 115 V AC

CARBONATOR PUMP MOTOR, CRADLE BASE MOUNTING, 1/2 HP, 1,725 NAMEPLATE RPM, 115 V AC

MARATHON MOTORS

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $524.95 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # DMD5XB87
  • Mfr. Model # 5KH36MNB637X
  • UNSPSC # 26101602
  • CATALOGUE PAGE # 9
  • Shipping Weight 18.32 lbs

Product Details

Carbonator pump, split phase open dripproof motor, HP 1/2, RPM 1725, voltage 115 V, NEMA frame 48YZ, service factor 1.00, frequency 60 Hz, mounting cradle/hub, bearings sleeve, thermal protection automatic, full load amps 7.8.

Technical Specs

  • ItemCarbonator Pump Motor
  • Motor Enclosure DesignOpen Dripproof
  • Frame48Y
  • Motor Shaft RotationCW/CCW
  • Nameplate RPM1,725
  • Hz60 Hz
  • Motor Mounting PositionAll Angle
  • Motor Thermal ProtectionAuto
  • Motor Sub ApplicationCarbonator Pump
  • Shaft Dia.5/8 in
  • StandardsUL Recognized, CSA Certified
  • Weight17 lb
  • Height5 13/16 in
  • Length Less Shaft8 9/16 in
  • Motor Service Factor1.2
  • Overall Length8 3/4 in
  • Usable @ 200VNo
  • Duty CycleContinuous
  • Motor Design Split-Phase
  • HP 1/2
  • Motor Mounting Type Cradle Base
  • Phase Single
  • Full Load Amps 7.2
  • Motor Frame Material Steel
  • Ins. Class B
  • Motor Application Pump
  • No. of Speeds 1
  • Shaft Length 1/4 in
  • Voltage 115V AC
  • Max. Ambient Temp. 40 Degrees C
  • Body Dia. 5.6 in
  • Motor Bearings Ball
  • Nominal Efficiency 66 %
  • Stator Type Split-Phase
  • Usable @ 208V No
  • Country of Origin Mexico (subject to change)
