PROFILE ROUTER BIT, PANEL PILOT, CARBIDE TIP, 1 5/16 IN SHANK L, ½ IN SHANK DIA

PROFILE ROUTER BIT, PANEL PILOT, CARBIDE TIP, 1 5/16 IN SHANK L, ½ IN SHANK DIA

WESTWARD

PROFILE ROUTER BIT, PANEL PILOT, CARBIDE TIP, 1 5/16 IN SHANK L, ½ IN SHANK DIA close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
PROFILE ROUTER BIT, PANEL PILOT, CARBIDE TIP, 1 5/16 IN SHANK L, ½ IN SHANK DIA

PROFILE ROUTER BIT, PANEL PILOT, CARBIDE TIP, 1 5/16 IN SHANK L, ½ IN SHANK DIA

WESTWARD

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $15.74 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # WSW16Y619
  • Mfr. Model # 16Y619
  • UNSPSC # 27112821
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.15 lbs

Product Details

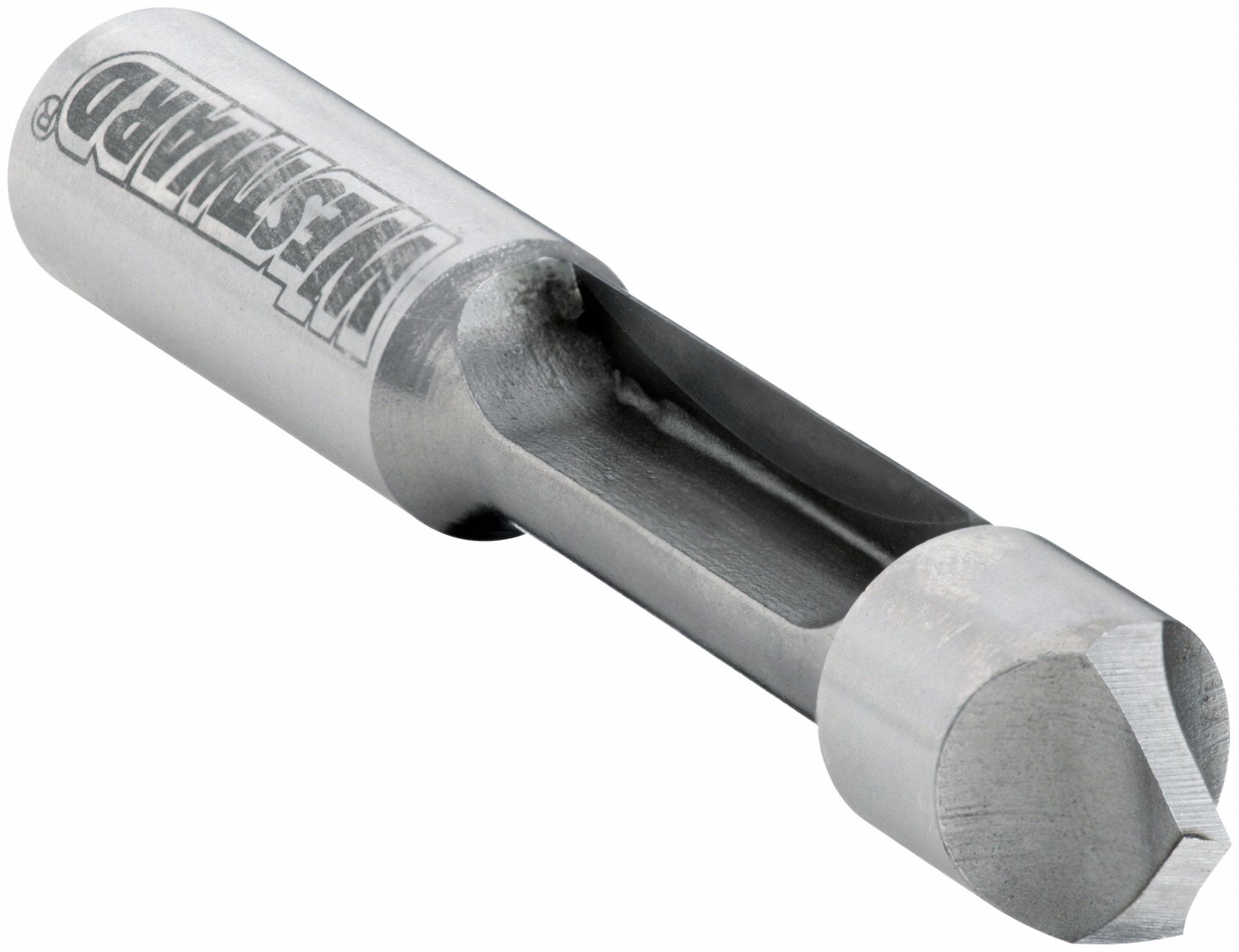

This panel pilot-cut profile router bit has a carbide tip. It has a 1 5/16-inch shank length, ½-inch shank diameter, ½-inch cutting diameter, and 3 15/32-inch overall length. The bit has a flute of 1¼-inch and is suitable for cut-out openings in a diverse combination of materials, especially in the mobile home, modular home, and RV industries.

Technical Specs

  • Item Panel Pilot Cut Profile Router Bit
  • Cutter Dia. 1/2 in
  • Overall Length 3 15/32 in
  • Shank Length 1 5/16 in
  • Material - Machining Carbide
  • Drilling Tool Configuration Individual
  • Primary Material Application Wood
  • Sub-Category Laminate and Trim Bit
  • Measurement System Fractional Inch
  • Length of Cut 1 1/4 in
  • Shank Dia. 1/2 in
  • Number of Flutes 1
  • Shape Pilot
  • End Mill Application Finishing, Roughing
  • Primary Material Application ISO Code O

Compliance and Restrictions

  • None
