AIR VENT, ONE PORT, TOP PORT, ¾ IN MNPT, FOR WATER, BRASS BODY, 150 PSI MAX, 250 ° F MAX, BOTTOM
AIR VENT, ONE PORT, TOP PORT, ¾ IN MNPT, FOR WATER, BRASS BODY, 150 PSI MAX, 250 ° F MAX, BOTTOM
HONEYWELL
close
close x
images.360.info.textHead1
360°
images.360.info.textHead2
Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
Zoom In: Double click on image.
Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Product Details

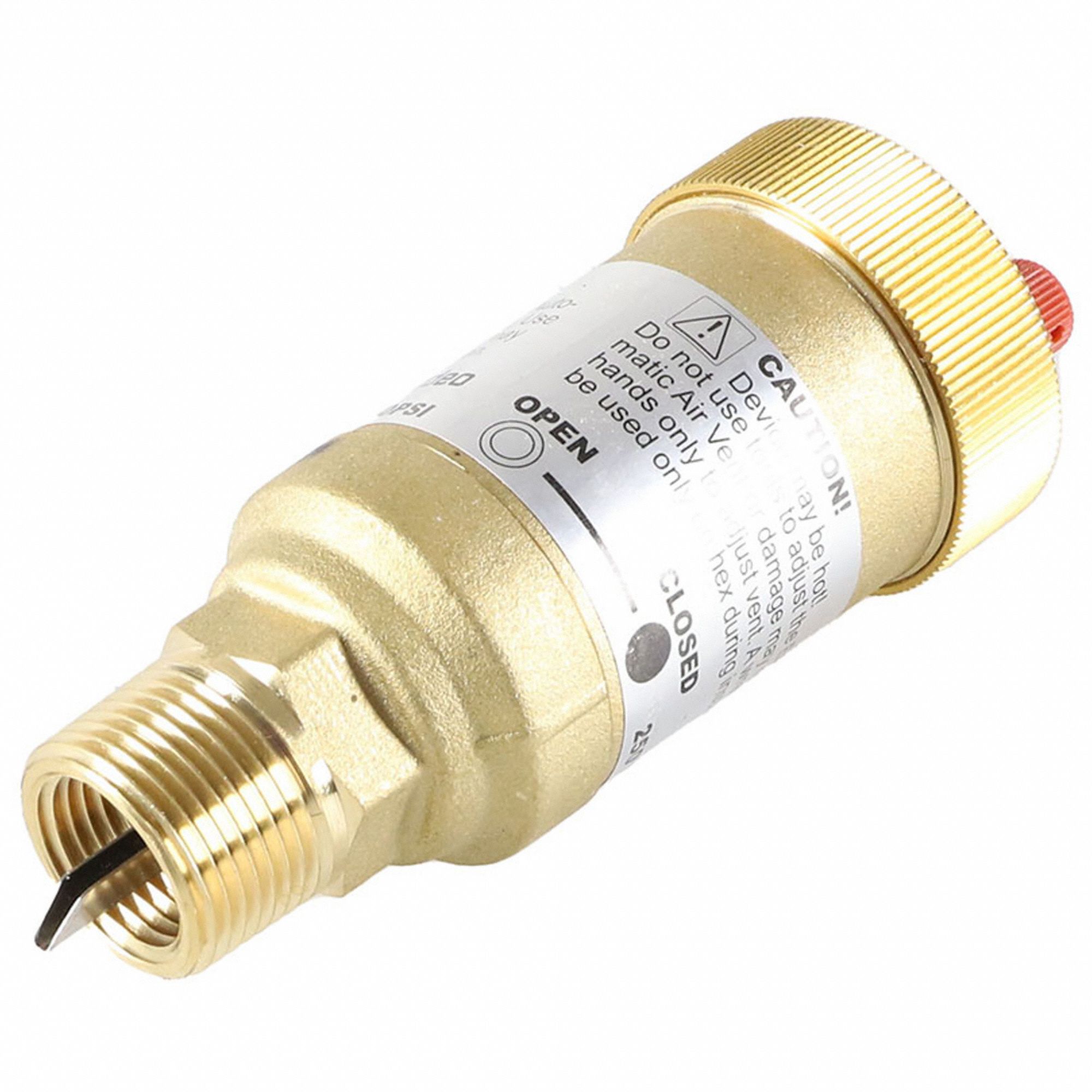

This air vent is made of brass. It measures 1⅞ inch width, 5 inch depth, 5 3/16 inch length. This air vent is designed for use with the following applications: air ventilation, potable water systems.
Technical Specs
Item Air Vent Allowable Pressure - Maximum 90 psi Body Material Brass Expansion Tank Connection Size 1/2 in For Media Water Inlet Port Connection Gender Male Inlet Port Connection Type NPT Installation Orientation Vertical Number of Outlet Ports 1 Operating Temperature - Maximum 250 Degrees F Overall Depth 5 in Overall Width 1 7/8 in Port Types Included Inlet, Outlet Release Method Automatic Secondary Inlet Port Connection Gender Female
Air Vent Type Float Application Air Ventilation, Potable Water Systems Configuration One Port Float Material Polyethylene Gasket Material NBR Inlet Port Connection Size 3/4 in Inlet Port Location Bottom Number of Inlet Ports 2 Operating Pressure - Maximum 150 psi Operating Temperature - Minimum 0 Degrees F Overall Length 5 3/16 in Port Adjustability Adjustable Product Type Air Vent Relief Port Location Top Secondary Inlet Port Connection Type NPT Country of Origin Germany
(subject to change)
