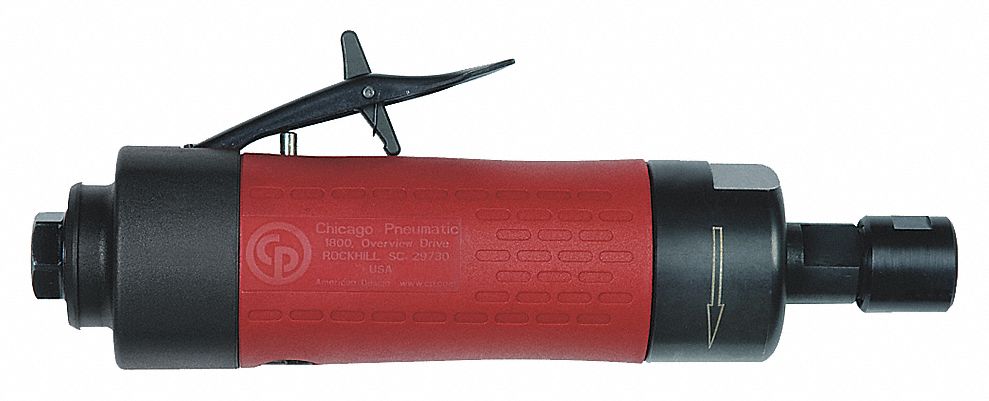

GRINDER DIE 1/4IN

GRINDER DIE 1/4IN

CHICAGO PNEUMATIC

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $745.85 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
https://catalogue.grainger.ca/?hybris=true
  • Item # CNPCP3000-518R
  • Mfr. Model # CP3000-518R
  • UNSPSC # 27131511
  • CATALOGUE PAGE # 1567
  • Shipping Weight 2.68 lbs

Product Details

Air Die Grinder, Industrial, Grinder Type Straight, 0.7 HP, Rear Exhaust, 7.0 Average CFM @ 15 Second Run Time, 28.0 CFM @ Full Load, 1/4 In. Collet, Required Pressure 90 psi, Air Inlet 1/4 In., Min. Hose Size 3/8 In., Ball Bearing Type, Aluminum with Com

Technical Specs

  • ItemDie Grinder
  • Horsepower0.7 hp
  • Grinder OrientationStraight
  • Air Inlet GenderFemale
  • Air Inlet TypeNPT
  • Tool StyleStraight
  • IncludesWrenches
  • Safety FeaturesStreamlined Safety Lever
  • Switch TypeSafety Lever
  • Power SourceAir Powered
  • Air Consumption28 cfm
  • Min. Hose Size3/8 in
  • Accessory Free Tool ChangeNo
  • Handle MaterialComposite
  • ApplicationDeburring, Die contouring, Light chamfering
  • StandardsEN ISO 11148-9:2012
  • Tool Weight1.9 lb
  • Duty Heavy Duty
  • Collet Size 1/4 in
  • Air Inlet Connection Size 1/4 in
  • Max. Speed 18,000 RPM
  • Air Inlet 1/4 in NPT Female
  • Kit Contents (1) Bare Tool
  • Grip Style Barrel Grip
  • Switch Location Top
  • Vibration Level 2.5 m/sq sec
  • Air Pressure 90 psi
  • Exhaust Location Rear
  • Minimum Speed 18,000 RPM
  • Bearing Type Ball
  • Overall Length 7 5/8 in
  • Features High Precision, Operator Comfort
  • Series CP3000 Series
  • Tool Brand Chicago Pneumatic
  • Country of Origin Taiwan (subject to change)
