FRACTIONAL-DISPLAY DIGITAL CALIPER, 0 TO 8 IN/0 TO 203MM RANGE, STAINLESS STEEL, 4-WAY

FRACTIONAL-DISPLAY DIGITAL CALIPER, 0 TO 8 IN/0 TO 203MM RANGE, STAINLESS STEEL, 4-WAY

GENERAL

FRACTIONAL-DISPLAY DIGITAL CALIPER, 0 TO 8 IN/0 TO 203MM RANGE, STAINLESS STEEL, 4-WAY close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
FRACTIONAL-DISPLAY DIGITAL CALIPER, 0 TO 8 IN/0 TO 203MM RANGE, STAINLESS STEEL, 4-WAY

FRACTIONAL-DISPLAY DIGITAL CALIPER, 0 TO 8 IN/0 TO 203MM RANGE, STAINLESS STEEL, 4-WAY

GENERAL

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $103.49 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # GTL1478
  • Mfr. Model # 1478
  • UNSPSC # 41111621
  • CATALOGUE PAGE # 1316
  • Shipping Weight 1.1 lbs

Product Details

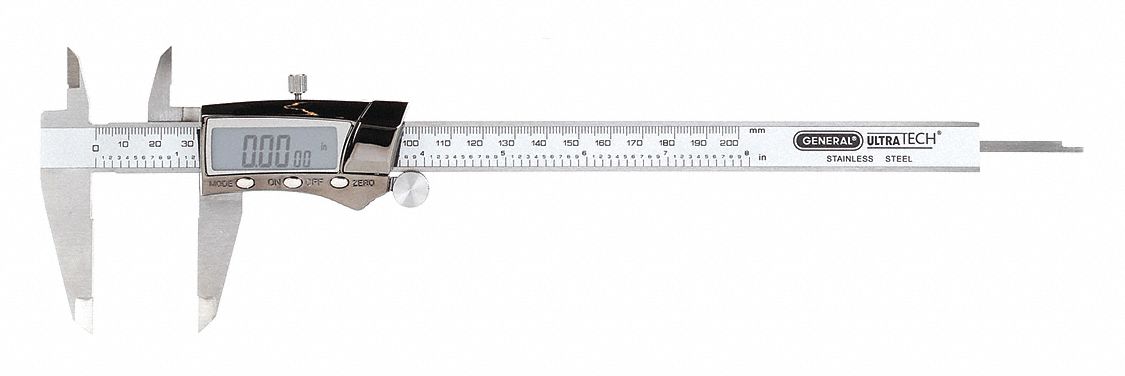

Electronic digital caliper, fractional, range 0-8/ 0-200 in/mm, resolution 0.0005 in/0.01 mm/164 in, accuracy 0.001 in/0.02 mm, jaw depth 1.57 in. Construction material stainless steel,large lcd display, characteristics rolling thumb wheel, control buttons on face zero, on/off and in/mm/fraction, automatic on/off, application three mode digital display of fractional, inch and millimeter, measuring speed 60 in per second, measurign system linear capacitive, molded plastic case.

Technical Specs

  • ItemFractional-Display Digital Caliper
  • Resolution+0.0005 in/-0.01 mm, 1/64 in
  • IP RatingNot Rated
  • Long Form Calibration CertificateNo
  • Caliper MaterialStainless Steel
  • Coolant ResistantNo
  • Jaw Depth1 21/32 in
  • Minimum Measurement - Fractional Inch0 in
  • Maximum Measurement - mm203 mm
  • Measures DepthYes
  • Measures Outside DimensionYes
  • Minimum Measurement - Inch0 in
  • Display TypeDigital
  • Water ResistantNo
  • Graduations - Lower Scale0.1 in
  • Includes BatteryYes
  • Repeatability+0.0005 in/-0.01 mm, 1/64 in
  • Range 0 in to 8 in, 0 mm to 203 mm
  • Accuracy +/-0.001 in, +/-0.02 mm
  • SPC Output No
  • Absolute Positioning Yes
  • Dimension Type Inch/Fractional, Inch/Metric
  • Jaw Actuation Type Thumb Wheel
  • Jaw Material Stainless Steel
  • Maximum Measurement - Inch 8 in
  • Measurements 4-Way
  • Measures Inside Dimension Yes
  • Measures Step Yes
  • Minimum Measurement - mm 0 mm
  • Battery Size SR44
  • Functions Inch/Fractional/Metric, Auto Power Off
  • Graduations - Upper Scale 1 mm
  • Jaw Shape Standard
  • With Locking Nut Yes
  • Country of Origin United States (subject to change)
