FARM DTY MTR,CAPSTRT,TEFC,1/2HP,1725RPM

FARM DTY MTR,CAPSTRT,TEFC,1/2HP,1725RPM

DAYTON

FARM DTY MTR,CAPSTRT,TEFC,1/2HP,1725RPM close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
FARM DTY MTR,CAPSTRT,TEFC,1/2HP,1725RPM

FARM DTY MTR,CAPSTRT,TEFC,1/2HP,1725RPM

DAYTON

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $452.73 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # DMD3K995
  • Mfr. Model # 3K995
  • UNSPSC # 26101602
  • CATALOGUE PAGE # 14
  • Shipping Weight 28.6 lbs

Product Details

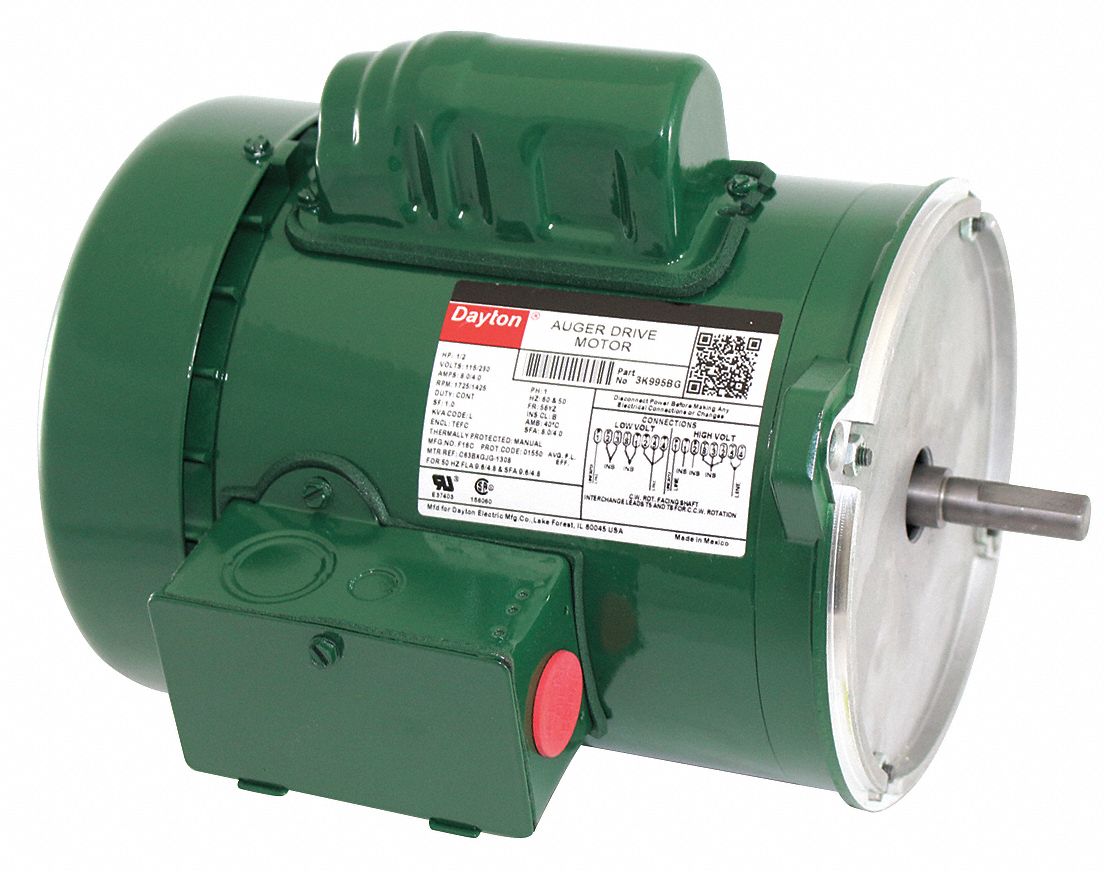

Farm duty TEFC motor. Typical Uses: Driving single phase poultry feed auger drives. 1/2 HP, 115/230 V, 1725/1425 RPM, 56YZ Frame motor.

Technical Specs

  • ItemAuger Drive Motor
  • Motor DesignCapacitor-Start
  • HP1/2
  • Nameplate RPM1,725
  • PhaseSingle
  • Motor Shaft RotationCW/CCW
  • Frame56YZ
  • Full Load Amps8.0/4.0 A
  • Motor Thermal ProtectionManual
  • Capacitor RequiredIncluded
  • No. of Speeds1
  • Shaft Dia.1/2 in
  • StandardsUL, CSA
  • Ins. ClassB
  • Max. Ambient Temp.40 Degrees C
  • Motor Frame MaterialRolled Steel
  • Motor Application Farm Duty
  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • Motor Mounting Type Face
  • Voltage 115/230V AC
  • Motor Service Factor 1
  • Motor Sub Application Auger
  • Hz 60/50 Hz
  • Motor Shaft Design Flat
  • Duty Cycle Continuous
  • Nominal Efficiency 61.5 %
  • Overall Length 11 9/16 in
  • Shaft Length 1 3/4 in
  • Includes Shaft Slinger, Conduit Box
  • Length Less Shaft 9 13/16 in
  • Motor Bearings Ball
  • Motor Mounting Position Horizontal
