JOBBER LENGTH DRILL BIT, 5/64 IN DRILL BIT SIZE, ⅞ IN FLUTE L, 12 IN LENGTH, HSS

JOBBER LENGTH DRILL BIT, 5/64 IN DRILL BIT SIZE, ⅞ IN FLUTE L, 12 IN LENGTH, HSS

CHICAGO-LATROBE

JOBBER LENGTH DRILL BIT, 5/64 IN DRILL BIT SIZE, ⅞ IN FLUTE L, 12 IN LENGTH, HSS close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
JOBBER LENGTH DRILL BIT, 5/64 IN DRILL BIT SIZE, ⅞ IN FLUTE L, 12 IN LENGTH, HSS

JOBBER LENGTH DRILL BIT, 5/64 IN DRILL BIT SIZE, ⅞ IN FLUTE L, 12 IN LENGTH, HSS

CHICAGO-LATROBE

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $16.38 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # WWG4ZN93
  • Mfr. Model # 40562
  • UNSPSC # 27112801
  • CATALOGUE PAGE # 1283
  • Shipping Weight 0.1 lbs

Product Details

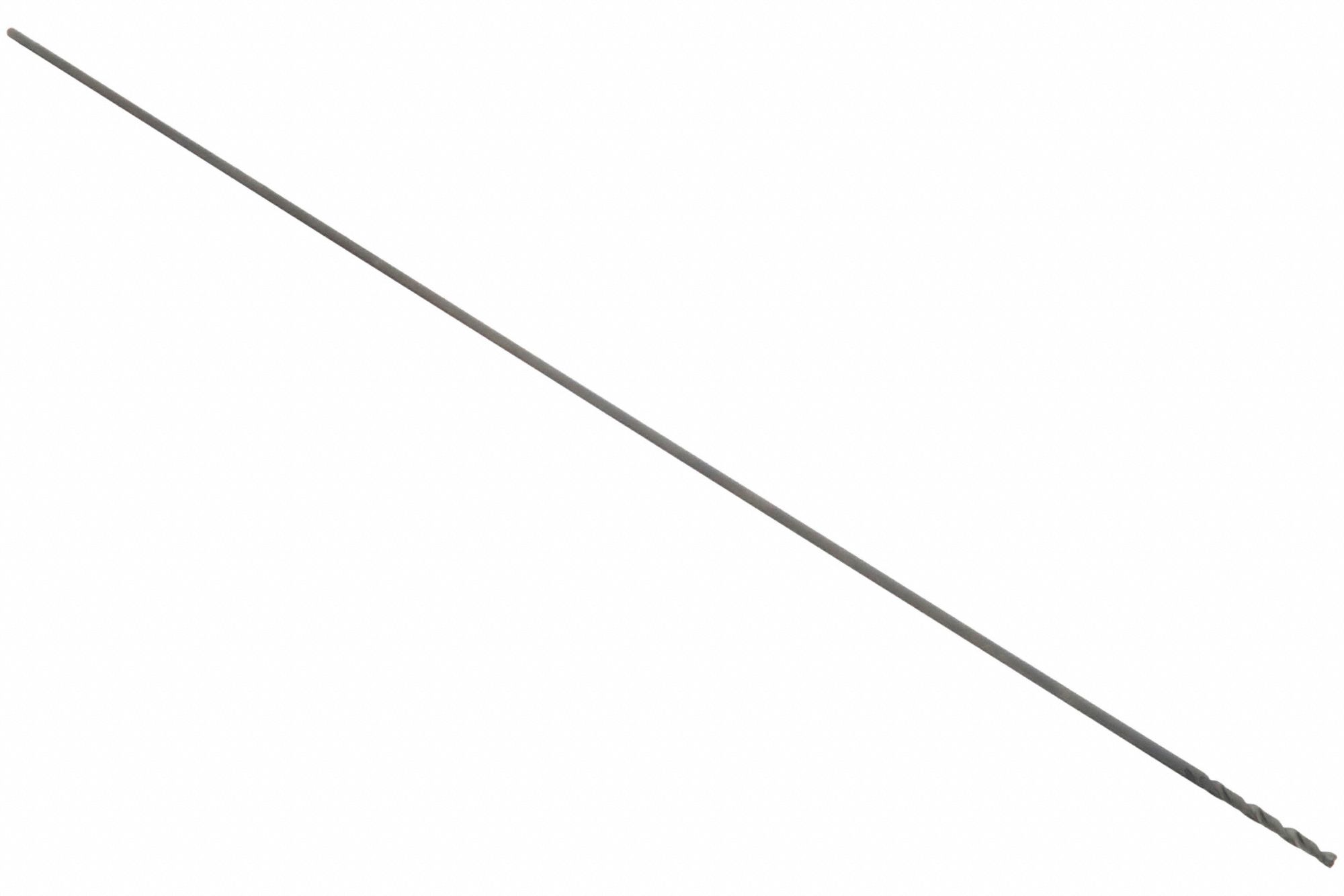

This high-performance jobber length drill bit is made of high speed steel and has a 1/16 inch diameter shank. It is for use with aluminum and non-ferrous material, cast iron and steel. This jobber length drill bit has a black oxide finish, and has fractional inch measurements. It is non-coolant through with a 12 inch length. Plus it has one ⅞-inch spiral flute, a straight shank, and a 135 Degrees split point.

Technical Specs

  • ItemJobber Length Drill Bit
  • Decimal Equivalent0.0625
  • Material - MachiningHigh Speed Steel
  • Drill Bit Point Angle135 Degrees
  • Coolant FedNon-Coolant Through
  • Number of Flutes1
  • Maximum Drilling Depth1/4 in
  • Cutting DirectionRight Hand
  • Shank Dia.1/16 in
  • Depth:Dia. Ratio4xD
  • Drill Point Length0.0129 in
  • StandardsNot Rated
  • Primary Material ApplicationAluminum, Cast Iron, Non-Ferrous Material, Steel
  • Drill Bit Size 5/64 in
  • Measurement System Fractional Inch
  • Finish - Machining Black Oxide
  • Drill Bit Point Type Split Point
  • Flute Type Spiral
  • Flute Length 7/8 in
  • Helix Angle 28 Degrees
  • Shank Type - Machining Straight
  • Overall Length 12 in
  • Drill Length Class Jobber Length
  • Drill Bit Grouping Individual
  • Material Grade - Machining High Performance
  • List Number 912CAT
