BIT, HINGE MORTISE, CARBIDE, 1¼ IN DIA, 29/64 IN CUT L, 2⅛ IN L, ¼ IN SHANK DIA

BIT, HINGE MORTISE, CARBIDE, 1¼ IN DIA, 29/64 IN CUT L, 2⅛ IN L, ¼ IN SHANK DIA

FREUD

BIT, HINGE MORTISE, CARBIDE, 1¼ IN DIA, 29/64 IN CUT L, 2⅛ IN L, ¼ IN SHANK DIA close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
BIT, HINGE MORTISE, CARBIDE, 1¼ IN DIA, 29/64 IN CUT L, 2⅛ IN L, ¼ IN SHANK DIA

BIT, HINGE MORTISE, CARBIDE, 1¼ IN DIA, 29/64 IN CUT L, 2⅛ IN L, ¼ IN SHANK DIA

FREUD

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $38.12 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Postal Code should be in LNLNLN format e.g. L3T7W8
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # FRD16-106
  • Mfr. Model # 16-106
  • UNSPSC # 56111905
  • CATALOGUE PAGE # N/A
  • Shipping Weight 0.195 lbs

Product Details

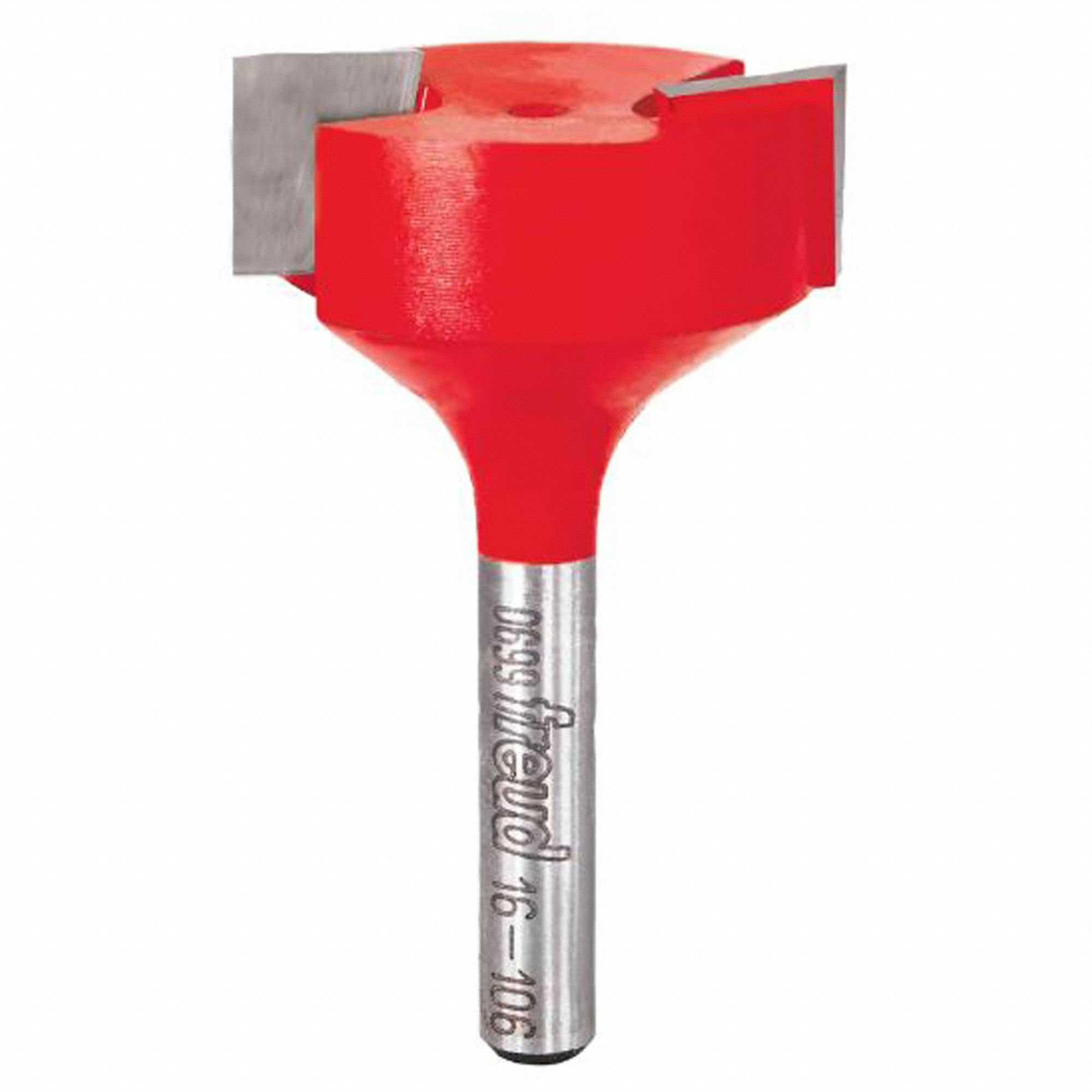

This hinge mortise bit is made of carbide. It has a 2⅛-inch overall length, 1¼-inch cutter diameter, ¼-inch shank diameter, 29/64-inch cut length, two flutes, and a maximum speed of 18000 RPM. The straight bit cuts all composition materials, plywood, hardwood, and soft wood. It features down shear design and deep center gullets.

Technical Specs

  • Item Spoilboard and Mortising Bit
  • Cutter Dia. 1 1/4 in
  • Overall Length 2 1/8 in
  • Number of Flutes 2
  • Shape Hinge Mortise
  • End Mill Application Finishing, Roughing
  • Primary Material Application ISO Code O
  • Measurement System Fractional Inch
  • Length of Cut 29/64 in
  • Shank Dia. 1/4 in
  • Material - Machining Carbide
  • Drilling Tool Configuration Individual
  • Primary Material Application Composite, Wood
  • Sub-Category Mortising
