NIB JAW DIGITAL CALIPER, 0 IN TO 40 IN/0 TO 1,00MM RANGE, +/-03 IN ACCURACY, CABLED

NIB JAW DIGITAL CALIPER, 0 IN TO 40 IN/0 TO 1,00MM RANGE, +/-03 IN ACCURACY, CABLED

MITUTOYO

NIB JAW DIGITAL CALIPER, 0 IN TO 40 IN/0 TO 1,00MM RANGE, +/-03 IN ACCURACY, CABLED close
close x

images.360.info.textHead1 360° images.360.info.textHead2

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.
Roll over image to zoom.
Available only while supplies last. Quantities may be limited. The Item is FINAL SALE.
NIB JAW DIGITAL CALIPER, 0 IN TO 40 IN/0 TO 1,00MM RANGE, +/-03 IN ACCURACY, CABLED

NIB JAW DIGITAL CALIPER, 0 IN TO 40 IN/0 TO 1,00MM RANGE, +/-03 IN ACCURACY, CABLED

MITUTOYO

Web Price If you have a User ID, sign in to view your account pricing. Your price may be different from the price displayed. : $2,961.56 / EACH

EHC: EHC :

Compliance and Restrictions

  • None

Availability
Availability
Availability Service is temporarily down Available for pickup on: To view Availability, please select a Branch
Availability Service is temporarily down Expected to arrive on: To view Availability for another location, please enter postal code below Availability dates may vary based on the assortment of product in the cart and is not final until you complete your order.
Select a Branch

Selected Branch


Cancel
Please select pick up location
Apply
https://catalogue.grainger.ca/?hybris=true
  • Item # MTT550-227-10
  • Mfr. Model # 550-227-10
  • UNSPSC # 41111621
  • CATALOGUE PAGE # N/A
  • Shipping Weight 18.22 lbs

Product Details

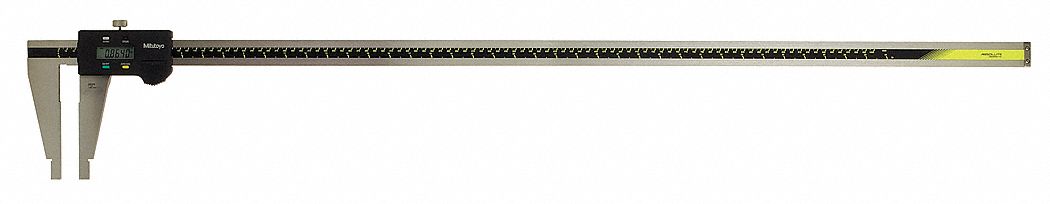

This nib jaw digital caliper is made out of stainless steel. It meets the standards for TUV Rheinland. This nib jaw digital caliper includes a case and a battery.

Technical Specs

  • ItemNib Jaw Digital Caliper
  • Resolution+0.0005 in/-0.01 mm
  • IP RatingNot Rated
  • Data Output TypeCable
  • Absolute PositioningYes
  • Dimension TypeInch/Metric
  • Dust ResistantYes
  • Jaw Actuation TypeSlide
  • Jaw MaterialStainless Steel
  • Maximum Measurement - Inch40 in
  • MeasurementsOutside, Inside
  • Measures Inside DimensionYes
  • Measures StepNo
  • Minimum Measurement - mm0 mm
  • Battery SizeSR44
  • Compatible SPC CableMfr. No. 959149, Mfr. No. 959150
  • Water ResistantNo
  • FunctionsOrigin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
  • Graduations - Upper Scale40 in
  • Includes CaseYes
  • Linear Encoder TypeElectrostatic Capacitance
  • StandardsTUV Rheinland
  • Range 0 in to 40 in, 0 mm to 1,000 mm
  • Accuracy +/-0.003 in
  • SPC Output Yes
  • Long Form Calibration Certificate No
  • Caliper Material Stainless Steel
  • Coolant Resistant No
  • Included Certification TUV Rheinland Certification
  • Jaw Depth 5 33/64 in
  • Minimum Measurement - Fractional Inch 0 in
  • Maximum Measurement - mm 1,000 mm
  • Measures Depth No
  • Measures Outside Dimension Yes
  • Minimum Measurement - Inch 0 in
  • Display Type LCD
  • Case Type Wooden Case
  • Data Output Connection Type Digimatic
  • Depth Rod Shape Rectangular
  • Graduations - Lower Scale 0 in
  • Includes Battery Yes
  • Jaw Shape Nib-Style
  • Repeatability +0.0005 in/-0.01 mm
  • With Locking Nut Yes
  • Country of Origin Japan (subject to change)
